3 Phase Coreless Permanent Magnet Generator with Aluminum Alloy Shell and Low Start Torque for Renewable Energy

ブランド名:

Greef

証明:

Model Number:

GDG

連絡ください

引金を求めてください

製品詳細

定格電圧:

カスタマイズされた

構造:

アウト/インナーローター

絶縁の抵抗:

100Mohm Min ((501V DC)

メンテナンス:

メンテナンスフリー

ジェネレーターの殻材料:

アルミニウム合金

STATOR:

コアのないワイヤコイル

頻度:

50/60HZ

定格電力:

0.05～100kW

支払いと送料の条件

Minimum Order Quantity

1Set

価格

交渉可能

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

支払条件

T/T、ウェスタンユニオン、マネーグラム、L/C

Supply Ability

Coreless Permanent Magnet Generator with Low Start Torque Maintenance-Free Design for 50/60HZ Frequency

最高の価格を入手する

ビデオ

Maintenance-free Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power

最高の価格を入手する

ビデオ

3 Phase Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Gearless Direct Drive for Industrial Applications

最高の価格を入手する

ビデオ

Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-free Design for Wind Power

最高の価格を入手する

連絡ください

今連絡してください

製品説明

3 Phase Coreless Permanent Magnet Generator Featuring Aluminum Alloy Shell and Inner Rotor Structure Suitable for Renewable Energy

Product Overview

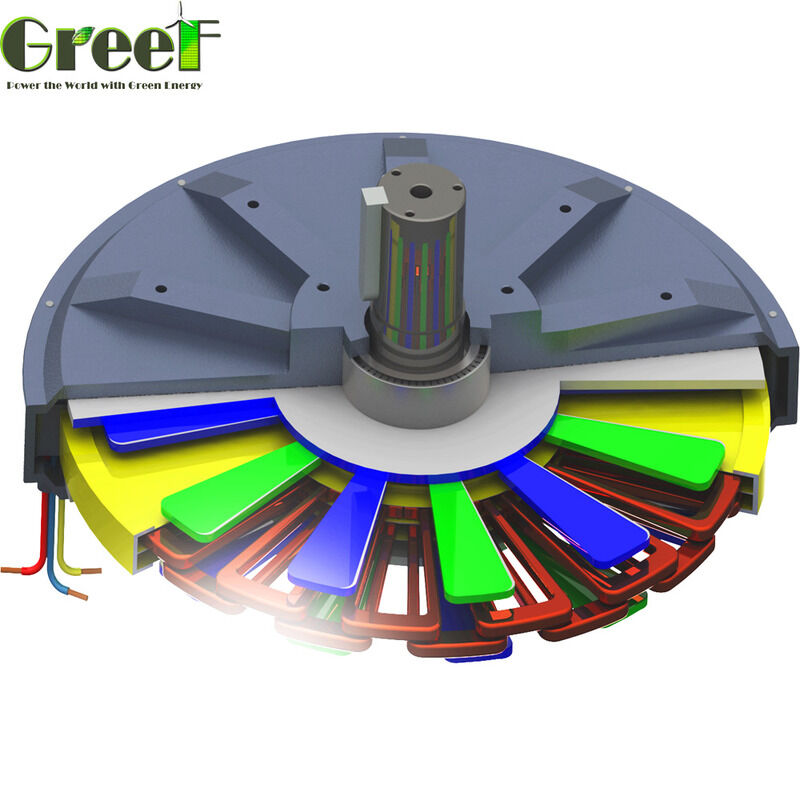

The GREEF NEW ENERGY GDG series features a disc-type permanent magnet generator that operates without an iron core. In this innovative design, the spindle and rotor are arranged in a disc shape, with the stator fixed at the center and the rotor rotating on both sides. The spindle contains only windings and excludes any iron core components.

Both stator and rotor utilize flat disc configurations with axial air gap magnetic flux, alternately positioned along the axial direction to create an efficient magnetic circuit. The generator's short axial length combined with large diameter enables practical multi-pole construction, delivering high power-to-weight ratio and effective low-speed operation.

Key Features

Low Start Torque Technology: Eliminates hysteresis and gear notches for extremely low starting torque (less than 0.1 N*m), ensuring smooth and efficient operation
High Efficiency: Core elimination reduces mechanical resistance and energy loss, enhanced by "Precise Coil" technology
Advanced Magnetic Design: Utilizes rare earth permanent magnets with multiple poles and small air gap for high power density and substantial output power
Gearless Direct Drive: Brushless maintenance-free mechanism provides hassle-free, durable long-term operation
Higher Reliability: Special structural design improves power-to-volume and power-to-weight ratios with eight times longer lifespan than traditional generators
Optimized for Low Wind Speeds: Enables higher wind turbine utilization in low wind speed conditions, maximizing energy capture
Excellent Heat Dissipation: Aluminum alloy outer frame with specially designed internal structure maintains optimal operating temperatures

Applications

Wind Power Generation: Ideal for megawatt-class wind turbines, enhancing output density and overall efficiency through elimination of iron losses and hysteresis losses
Renewable Energy Systems: Suitable for solar power setups and various renewable energy technologies with efficient energy conversion and dependable performance
Industrial Applications: Provides reliable backup or auxiliary power sources for industrial equipment with lightweight design and stable power delivery
Customized Solutions: Highly adaptable structure allows customization of power output, rotational speed, and voltage parameters for specialized scenarios

Customization Options

Greef offers comprehensive customization services for the Coreless Permanent Magnet Generator (Model GDG). Our CE certified generators feature coreless wire coil stators and outer-rotor structures for high efficiency and reliability.

Customization Specifications:
• Rated Power: 0.05kW to 100kW
• Rated Voltage: Fully customizable
• Maintenance-free operation
• Minimum Order: 1 set
• Packaging: Protective foam and plywood cases
• Delivery: 25 working days standard
• Payment: T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Product Packaging: Each generator is securely enclosed in anti-static foam padding within sturdy, custom-designed cardboard boxes. Tamper-evident sealing and clear handling instructions ensure maximum protection during transit.

Shipping Services: Worldwide shipping processed within 2 business days with tracking available. Options include standard ground, expedited, and express delivery. Insurance coverage available for protection against loss or damage during shipping.

評価とレビュー

総格付け

5.0

このサプライヤーに対する50件のレビューに基づいています

評価のスナップショット

すべての評価の分布は以下の通りです

5 星

100%

4 星

3 星

2 星

1 星

すべてのレビュー

L*s

Czech Republic May 4.2023

役に立つ (4)

“I built a small pico hydro system on the creek behind my off-grid cabin. The water head is only 3 meters and flow rate around 0.2 m³/s – too low for most generators. This axial flux coreless unit starts generating usable power at just 150 RPM. No cogging, no iron loss, and it’s silent. I’m getting 300-400W continuously, 24/7. My old induction generator would barely light an LED at that speed. Absolutely perfect for low-head hydro.”
