家へ > 製品 > 永久マグネット発電機 >
低回転PMとIP54のエネルギー変換保護の高効率の常磁石発電機

低回転PMとIP54のエネルギー変換保護の高効率の常磁石発電機

ブランド名:

Greef

証明:

CE

Model Number:

GDF

連絡 ください
引金 を 求め て ください
製品詳細
Effienciency:
>95%
発電機の種類:
3 段階 AC 常磁石
IPレベル:
IP67
製品名:
永久磁石発電機
ポール:
2-48
現在のタイプ:
交流
巻線材:
Y
指定回転速度:
20回転から3000回転
支払いと送料の条件
Minimum Order Quantity
1 Set
価格
交渉可能
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Payment Terms
T/T
関連製品
連絡 ください
今連絡してください
製品説明
95%以上の効率を持つ2~48極永久磁石発電機

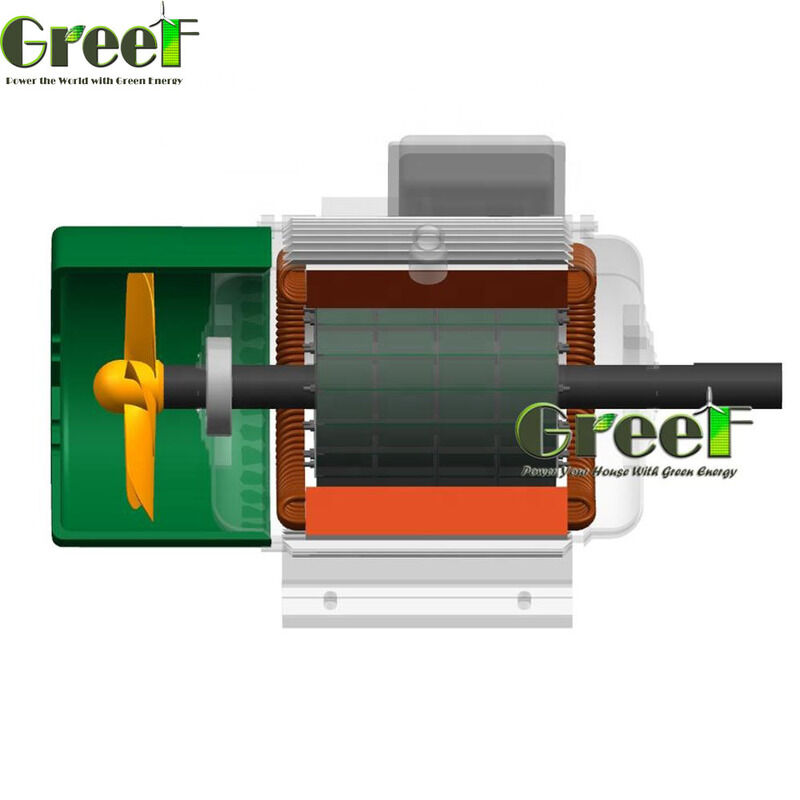

低回転PMとIP54のエネルギー変換保護の高効率の常磁石発電機 0
製品概要
永久磁石発電機の基本的な概念は、ローターに永久磁石材料を組み込み、安定した磁場を生成することです。この磁場は、ローターに埋め込まれた永久磁石固有の特性により一定に保たれます。
風力タービン、水力タービン、エンジンなどの外部原動機がローターを回転させると、ローターが生成する磁場も回転します。この回転磁場がステーター巻線を通過する際に、ステーターの周りに巻かれた導体と相互作用します。
電磁誘導の法則に基づき、ステーター巻線に対する磁場の動きが、それらの巻線内に起電力を誘導します。ステーターに外部負荷または回路を接続することで、発電機は機械エネルギーから生成された電力供給が可能です。
主な特徴
  • ギアボックス不要のシンプルで堅牢な設計のダイレクトドライブシステム
  • 最小限のメンテナンスと信頼性向上を実現するブラシレス機構
  • 力率1に近い95%を超える高効率
  • 時計回りおよび反時計回りの両方の回転をサポートする挿入型Nd-Fe-B永久磁石
  • 低速でも高電圧・高出力を生成可能
  • 20年以上の長寿命、24時間365日の連続運転能力
  • 電圧、速度、電力、周波数などの仕様をカスタマイズ可能
  • 3年間の無料保証期間と生涯メンテナンス・サービスサポート
技術仕様
パラメータ 仕様
定格出力 0.5 kW~5000 kW
定格速度 20~3000 rpm
周波数 50~60 Hz
発電機タイプ 同期3相AC
極数 2~48
磁石タイプ NdFeB
巻線方式 Y型
磁石温度 120℃まで
巻線温度 180℃まで
効率 95%以上
絶縁等級 H
絶縁抵抗 500 V DCで100 MΩ以上
ハウジング材質 鋳鉄
巻線 銅100%
鉄心 冷延電磁鋼板
シャフト材質
ベアリング SKFブランド
冷却システム ファン冷却
保護等級 IP54
設置 水平・垂直
重量 約1200 kg
低回転PMとIP54のエネルギー変換保護の高効率の常磁石発電機 1
用途
  • 風力発電: 最新のダイレクトドライブおよびセミダイレクトドライブ風力タービンのコアコンポーネント
  • 海洋・オフショア: 船舶用シャフト発電機および主/補助電源システム
  • バックアップ電源システム: 緊急用電源としてのディーゼル・ガス発電機セット
  • 高速用途: マイクロタービンおよびフライホイールエネルギー貯蔵システム
  • 産業分野: 高い電力密度と卓越した信頼性を必要とする特殊なコンテキスト
カスタマイズオプション
モデル: GDF | 原産国: 中国 | 冷却: ファン | 効率: 95%以上
保護: IP54 | 認証: CE | 電流タイプ: AC
動作: 低速・低始動トルク
最小注文数量1セットで柔軟なカスタマイズを提供します。価格はプロジェクト要件に基づいて交渉可能です。納期は通常25営業日で、支払い条件はT/Tに基づきます。
梱包および配送
各永久磁石発電機は、輸送中の保護のために帯電防止フォームとバブルラップで丁寧に梱包されます。発電機は、追加の緩衝材を備えた頑丈な段ボール箱に収められます。大型モデルは、耐久性を高めるために木製クレートに梱包されます。
すべての梱包材は環境に優しくリサイクル可能です。配送オプションには、航空、海上、陸上輸送が含まれます。パッケージには取り扱い指示が明確に表示され、追跡情報が提供されます。
低回転PMとIP54のエネルギー変換保護の高効率の常磁石発電機 2
