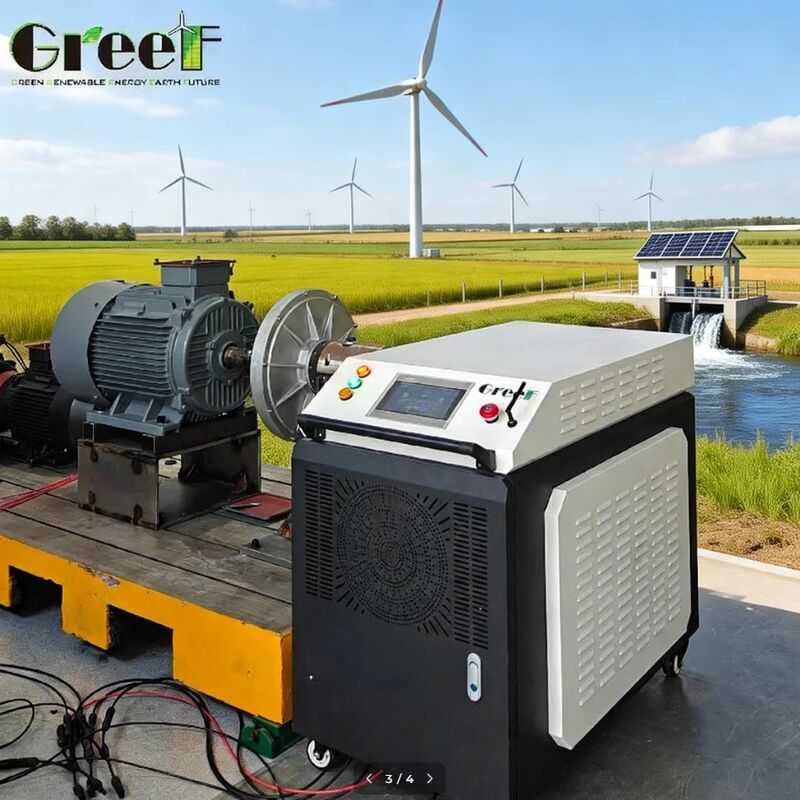

LCD Smart Touch Screen High Capacity Solar Inverter
Minimum DC Voltage 580V Energy Conversion Solution for Industrial Applications
Product Overview
The Power Conversion Inverter serves as the central control unit in energy storage systems, functioning as the intelligent core that manages the entire setup. It enables efficient electrical energy transformation between alternating current (AC) and direct current (DC), providing comprehensive power flow control and management capabilities.
AC/DC Conversion Technology
During charging operations (AC to DC), the inverter converts surplus grid power or photovoltaic-generated AC electricity into DC power for battery storage through rectification. In discharging mode (DC to AC), it transforms stored battery DC power back into AC electricity for grid supply or direct load consumption via inversion.
Operational Flexibility
Supporting both grid-tied and off-grid operations, this inverter ensures seamless transitions between main grid connectivity and independent microgrid functionality, guaranteeing continuous power availability across diverse operating conditions.
Key Features
- EMS Smart Energy Management System with multiple configurable operating modes
- Off-grid, grid-tied, and grid charging mode support
- LCD smart touch screen display for intuitive operation
- AC/DC dual backup for reliable auxiliary power supply
- Advanced unbalanced load control technology
- RS-485 Modbus RTU protocol compatibility
- Optional WIFI and LAN remote monitoring via dedicated app
- Static Transfer Switch (STS) support for grid-tie and off-grid applications
Technical Specifications
| Parameter |
Specification |
| Product Name |
Power Conversion System Inverter (Off-the-power-grid Converter) |
| Rated Grid Voltage |
400V |
| Ambient Temperature |
-40°C to +60°C |
| Frequency |
50Hz/60Hz |
| Display |
LCD Smart Touch Screen |
| Maximum Efficiency |
98.9% |
| DC Voltage Operating Range |
580-1000V |
| Power Factor |
> 0.99 |
| Maximum DC Current |
174A/192A/217A |
| Permissible Grid Voltage Range |
300-460V |
This off-grid power inverter is engineered for efficient and reliable power conversion in standalone power systems.
Application Systems
Wind Turbine System: Converts wind energy into electrical power for sustainable energy production.
Hydro System: Transforms kinetic energy from flowing water into reliable renewable electricity.
Solar System: Utilizes photovoltaic panels to convert sunlight directly into electrical energy.
Generator System: Provides backup or primary power by converting mechanical energy into electricity.
On/Off Hybrid System: Integrates multiple energy sources for optimized power production and flexible operation.
Customization Options
Greef Mars Off Grid Power Inverter - A premium independent energy inverter manufactured in China with CE certification. This isolated power converter delivers superior performance with safe, stable power output.
Key Specifications: Permissible grid voltage range 300-460V, rated grid voltage 400V, DC output type. Features short circuit protection and intelligent air cooling for enhanced durability and operational safety.
Ordering Information: Minimum order quantity 1 set, monthly supply capacity 400 sets. Delivery time 15-25 days. Payment options include T/T, Paypal, D/P, and Money Gram.
