Name: 100 Kilowatt On Grid Controller with Lithium-ion Battery and 95% Maximum Efficiency for Solar Power Optimization
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

家へ > 製品 > 格子コントローラー >

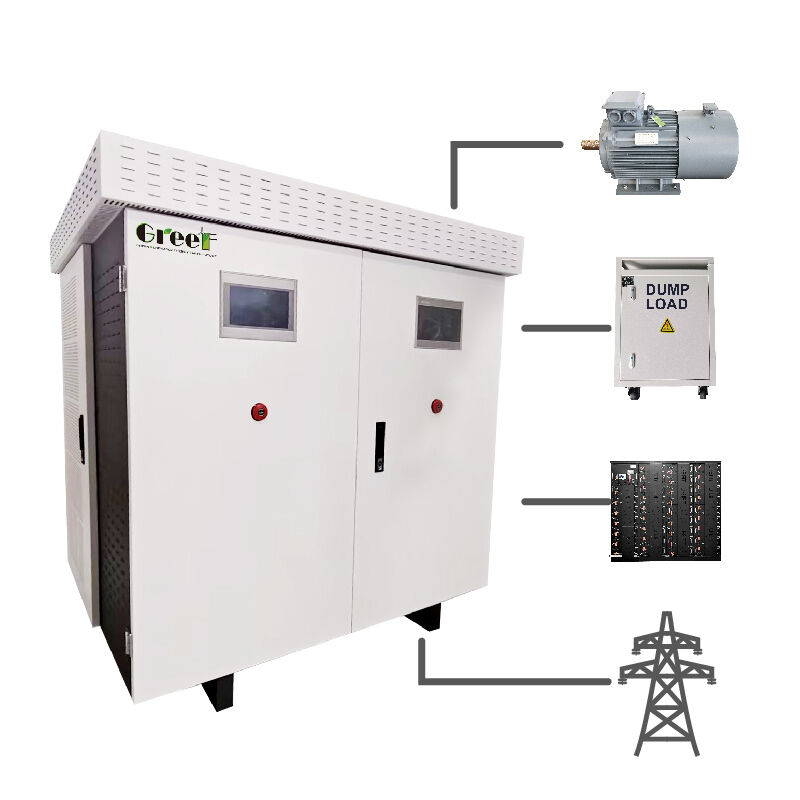

100 Kilowatt On Grid Controller with Lithium-ion Battery and 95% Maximum Efficiency for Solar Power Optimization

100 kilowatt On Grid Controller

Lithium-ion battery AC Generator-Battery Hybrid Converter

95% maximum efficiency Energy Management Controller

ブランド名:

Greef

証明:

Model Number:

AC PCS

連絡ください

引金を求めてください

100 Kilowatt On Grid Controller with Lithium-ion Battery and 95% Maximum Efficiency for Solar Power Optimization

製品詳細

保護レベル:

IP54

最大効率(%):

95%

許容グリッド電圧範囲(v):

300～460

トポロジー:

AC-DC整流器、DC-DC昇降圧、DC-ACインバータ、EMS

通信モード:

イーサメット、RS485、WIFI

待機時消費電力(W):

< 50

定格グリッド電圧(V):

400

最大交流電流(A):

180

支払いと送料の条件

Minimum Order Quantity

1Set

価格

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

支払条件

T/T、ウェスタンユニオン、マネーグラム、L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

最高の価格を入手する

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

最高の価格を入手する

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

最高の価格を入手する

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

最高の価格を入手する

連絡ください

今連絡してください

製品説明

AC Generator-Battery Hybrid Converter 100kW On-Grid Controller

Advanced lithium-ion battery system designed to optimize solar power output and maintain grid stability through intelligent energy management.

Product Overview

The GREEF ENERGY multi-functional converter integrates AC-to-DC rectification for permanent magnet generators, battery charging, and DC-to-AC inversion with a comprehensive energy management system. Featuring a configurable dual LCD touchscreen, this converter provides stable voltage and frequency control for permanent magnet synchronous generators, ensuring uninterrupted power supply to connected loads with seamless grid-tied operation capabilities.

Key Features

EMS Smart Energy Management System with multiple configurable operating modes (off-grid, grid-tied, grid charging)
Double LCD smart touch screen display for intuitive monitoring and control
Advanced generator power curve tracking technology
AC/DC dual backup for auxiliary power supply
Specialized control for unbalanced load management
RS485 Modbus RTU protocol for seamless integration
Optional PWM dump load with over voltage and over speed protection
Optional water gate motor control function
Optional WIFI/LAN remote monitoring and control application
Optional Static Transfer Switch (STS) for Grid-Tie and Off-Grid applications
Customized sensor control functions available

Technical Specifications

Parameter	Specification
Model	Mars-100kt
Rated Power	100 kW
Rated Voltage (Vac)	≥ 320 V
Optimal Generator Rated Voltage	450 Vac
AC Voltage Working Range	240 - 550 Vac
Maximum AC Current	180 A
Battery Type	Lithium-ion
Battery Voltage Range	350 - 450 Vdc
Rated Battery Voltage	400 Vdc
Max Charging & Discharging Current	250 A
Rated Grid Voltage	400 V
Permissible Grid Voltage Range	300 - 460 V
Rated Grid Frequency	50 / 60 Hz
Maximum Efficiency	95%

Performance Characteristics

Total harmonic distortion rate at rated power: <3% | Power factor: >0.99 (operating range -1 to 1) | Overload capacity: 1.2x rated power continuous for 1 minute

Protection Features

AC short-circuit protection
AC output overcurrent protection
Level 2 surge protection
Optional over voltage and speed protection

Applications

The GREEF ENERGY multi-functional converter provides intelligent power management solutions across diverse applications:

Renewable Energy Systems - Integration of PMSG from wind/hydro turbines into off-grid or hybrid setups
Off-Grid & Backup Power - Power conversion for remote locations, cabins, and telecommunications stations
Grid-Interactive Systems - Synchronized operation with utility grid for charging and surplus energy management
Industrial & Commercial Power - Stable power supply with remote monitoring and building management integration
Specialized Control - Water gate motor control and Static Transfer Switch for automatic mode transitions

Customization Services

Greef Energy offers comprehensive customization for our CE-certified On Grid Controller (AC PCS). Our advanced controller features PWM unloading + three-phase unloading system for efficient energy management. The unit supports wind turbine speed and wind speed monitoring with secure foam and plywood packaging. Delivery within 25 working days with minimum order quantity of 1 set. Flexible pricing and payment terms including T/T, Western Union, MoneyGram, and L/C.

Packaging & Shipping

Product Packaging

Sturdy eco-friendly cardboard box with foam inserts for maximum protection. Includes controller unit, user manual, installation accessories, and warranty card.

Shipping Services

Reliable shipping options with standard and expedited services worldwide. All packages are inspected, sealed, and insured against loss or damage during transit. Tracking information provided upon shipment.

Manufacturing & Certification: Made in China | CE Certified
Supply Ability: Reliable production capacity to meet project demands
