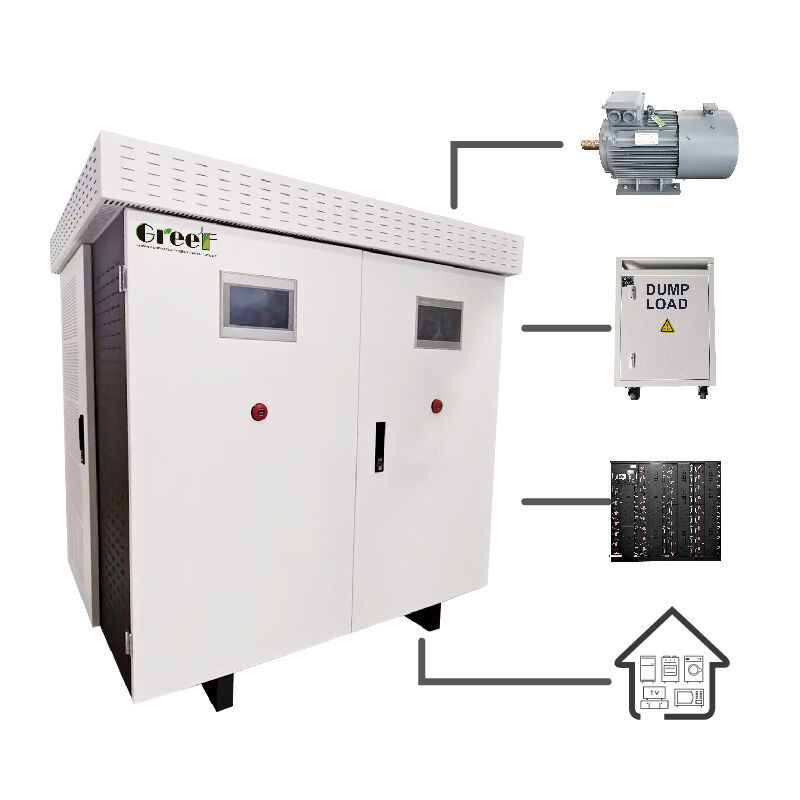

300~460V許容グリッド電圧範囲、144A定格充放電電流、太陽光発電制御用WIFI通信モード搭載オンサイトコントローラー

300~460V許容グリッド電圧範囲、144A定格充放電電流、太陽光発電制御用WIFI通信モード搭載オンサイトコントローラー

300~460V許容グリッド電圧範囲オンサイトコントローラー

144A定格充放電電流エネルギー管理コントローラー

WIFI通信モード AC発電機・バッテリーハイブリッドコンバーター

ブランド名:

Greef

証明:

CE

Model Number:

AC PCS

連絡 ください
引金 を 求め て ください
製品詳細
保護レベル:
IP54
待機時消費電力(W):
< 50
トポロジー:
AC-DC整流器、DC-DC昇降圧、DC-ACインバータ、EMS
画面:
スマートタッチスクリーン
通信モード:
イーサメット、RS485、WIFI
定格電力(KW):
100
AC電圧動作範囲(Vac):
240~550
バッテリー定格電圧(Vdc):
400
ハイライト:

300~460V許容グリッド電圧範囲オンサイトコントローラー

,

144A定格充放電電流エネルギー管理コントローラー

,

WIFI通信モード AC発電機・バッテリーハイブリッドコンバーター

支払いと送料の条件
Minimum Order Quantity
1Set
価格
交渉可能
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
支払条件
T/T、ウェスタンユニオン、マネーグラム、L/C
Supply Ability
Supply Ability
製品説明
製品概要
GREEF ENERGYの多機能変換器は,単一の効率的なシステムに複数の基本的な電力管理機能を統合しています.このコントローラには 300~460ボルトの電網電圧範囲が許容されていますWIFI通信機能と144アンプの電荷/放電電電流を搭載して ソーラー電力を最適に制御できます
主要 な 特徴
EMS スマートエネルギー管理システム
拡張的なシステム統合のために,オフグリッド,グリッド・タイド,グリッド・チャージオプションを含む構成可能な動作モードで高度なエネルギー管理.
  • 直感的な制御とモニタリングのためのダブルLCDスマートタッチスクリーンディスプレイ
  • 発電機の電力の曲線追跡技術により エネルギー生産を最適化
  • 補助電源の信頼性のためにAC/DCの二重バックアップ
  • 安定した動作のための不均衡負荷制御技術
  • RS-485 Modbus RTU システム統合プロトコル
  • 超電圧および超速度保護のためのオプションのPWMダンプ負荷
  • 選択可能なウォーターゲートモーター制御とWiFi/LAN遠隔監視
  • カスタマイズされたセンサー制御サポートと静的転送スイッチ (STS) 機能
テクニカル仕様
モデル マース-100kt
定数電源 100kW
定位電圧 ≥320Vac
最適な発電機電圧 450Vac
AC電圧の作業範囲 240〜550Vac
最大交流電流 180A
バッテリータイプ リチウムイオン
バッテリーの電圧範囲 350〜450 Vdc
電池の電圧 400 Vdc
最大充電/放電電電流 250A
定位電荷/放電電電流 144A
容許された電網電圧範囲 300〜460V
最大 の 効率性 95%
電気性能
定位電源で総調和歪みは3%未満で,電源因子は0を超える.99超負荷容量は1分持続可能です
保護 機能
  • 超電圧・速度保護 (オプション)
  • AC短回路保護
  • AC出力超電流保護
  • レベル2 超電圧保護
申請
この汎用的なコンバーターは,複数の産業およびエネルギー管理アプリケーションに対応しています.
  • 再生可能エネルギーシステム:PMSG 風力発電機と水力発電機との統合
  • オフグリッドとバックアップ電源:遠隔地,小屋,通信ステーション
  • グリッドインタラクティブシステム:供給可能でグリッド・タイド・オペレーション
  • 産業用電力管理リモコンモニタリングによる不均衡の負荷に対する安定電源
  • 専門制御:ウォーターゲートモーター制御と静的転送スイッチのアプリケーション
カスタマイズ & オーダー
CE認証のGREEF On Grid Controller (AC PCS) とタッチスクリーンディスプレイとリモコンシステム.PWM卸荷とリチウムイオン電池サポートの3相卸荷システム.
  • 最低注文数: 1セット
  • 納期: 25 営業日
  • 支払い方法:T/T,ウェスタンユニオン,マネーグラム,L/C
梱包 と 輸送
環境に優しい紙箱に オーダーメイドの泡の挿入物で 安全に包装されています追跡と保険のオプションで利用可能な世界中に送料処理時間: 2-5 営業日
