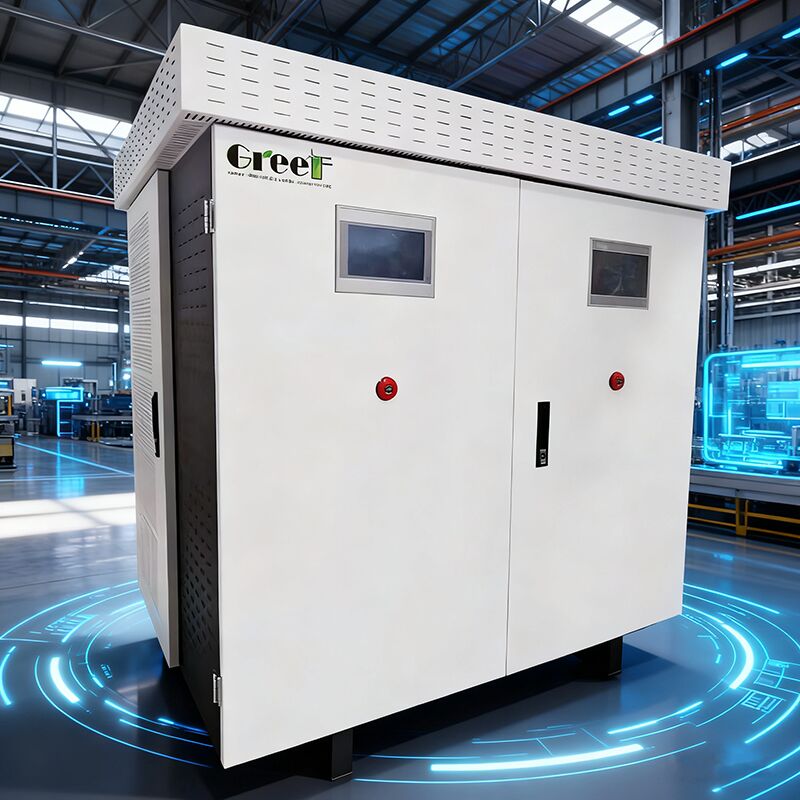

Name: AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

家へ > 製品 > 格子コントローラー >

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

50Hz/60Hz Rated Grid Frequency On Grid Controller

-40 to 60 Degrees Environment Temperature Wind Controller

100 kW Rated Power AC Generator-Battery Hybrid Converter

ブランド名:

Greef

証明:

Model Number:

AC PCS

連絡ください

引金を求めてください

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

製品詳細

格子周波数 (Hz):

50HZ/60HZ

環境温度:

-40～60

定数電圧 (VAC):

≥ 320

定格充放電電流(A):

144

通信モード:

イーサメット、RS485、WIFI

トポロジー:

AC-DC整流器、DC-DC昇降圧、DC-ACインバータ、EMS

バッテリー定格電圧(Vdc):

400

最適な発電機定格電圧(Vac):

450

支払いと送料の条件

Minimum Order Quantity

1Set

価格

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

支払条件

T/T、ウェスタンユニオン、マネーグラム、L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

最高の価格を入手する

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

最高の価格を入手する

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

最高の価格を入手する

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

最高の価格を入手する

連絡ください

今連絡してください

製品説明

AC Generator-Battery Hybrid Converter

Integrated Power Conversion System

The GREEF ENERGY multi-functional converter integrates AC-to-DC rectification for Permanent Magnet generators, battery charging, and DC-to-AC inversion in a single system. Featuring advanced energy management and dual LCD touchscreen interface, this converter provides stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs), ensuring reliable power supply to connected loads. Configurable grid-tied operation enables seamless integration with both standalone and grid-connected power systems.

Technical Specifications

Generator Input

Rated Power: 100 kW

Voltage Range: 240-550 Vac

Optimal Voltage: 450 Vac

Max Current: 180 A

Battery System

Type: Lithium-ion

Voltage Range: 350-450 Vdc

Rated Voltage: 400 Vdc

Max Charge/Discharge: 250 A

Grid Output

Rated Power: 100 kW

Max Power: 120 kW

Voltage: 300-460 V

Frequency: 50/60 Hz

Performance & Protection

Parameter	Specification
Efficiency	Up to 95%
Power Factor	>0.99 (adjustable -1 to 1)
THD	<3% at rated power
Overload Capacity	1.2x rated power for 1 minute
Protection Level	IP54
Operating Temperature	-40°C to 60°C
Max Altitude	4,000 meters

System Features

AC-DC rectification, DC-DC buck boost, and DC-AC inversion topology
Energy Management System (EMS)
Dual LCD SMART touchscreen interface
Intelligent air cooling system
Communication: Ethernet, RS485, WiFi
Standby power consumption: <50 W

Applications

Renewable Energy Systems

Integration with PMSG wind turbines and hydro turbines for off-grid or hybrid power setups

Off-Grid & Backup Power

Central hub for remote locations, cabins, telecom stations with generator input, battery charging, and inverter control

Grid-Interactive Systems

Grid-tied operation for battery charging and potential grid feedback

Industrial & Commercial Power

Stable power supply under unbalanced loads with remote monitoring via WIFI/LAN and Modbus integration

Customization & Ordering

The GREEF ENERGY AC PCS On Grid Controller offers comprehensive customization options with detailed monitoring capabilities including generator speed, input/output parameters, and power generation statistics. CE certified and manufactured to highest standards.

Physical Dimensions

Height: 1500 mm
Width: 1500 mm
Depth: 1300 mm
Weight: ≤ 600 kg (excluding dump load)

Order Information

Parameter	Details
Minimum Order	1 set
Delivery Time	~25 working days
Payment Terms	T/T, Western Union, MoneyGram, L/C
Packaging	Foam and plywood cases
