家へ > 製品 > 格子コントローラー >
240~550V AC電圧範囲,最大効率95%,電源供給ソリューションのためのLCD SMARTタッチスクリーン

240~550V AC電圧範囲,最大効率95%,電源供給ソリューションのためのLCD SMARTタッチスクリーン

240~550V AC電圧範囲 ネットワークコントローラ

95% 最大効率 グリッド接続制御器

LCD スマートタッチスクリーン エネルギー管理コントローラ

ブランド名:

Greef

証明:

CE

Model Number:

AC PCS

連絡 ください
引金 を 求め て ください
製品詳細
最大効率(%):
95%
バッテリー電圧範囲(Vdc):
350 - 450
格子周波数 (Hz):
50HZ/60HZ
最大交流電流(A):
180
定格電力(KW):
100
定格グリッド電圧(V):
400
通信モード:
イーサメット、RS485、WIFI
トポロジー:
AC-DC整流器、DC-DC昇降圧、DC-ACインバータ、EMS
ハイライト:

240~550V AC電圧範囲 ネットワークコントローラ

,

95% 最大効率 グリッド接続制御器

,

LCD スマートタッチスクリーン エネルギー管理コントローラ

支払いと送料の条件
Minimum Order Quantity
1Set
価格
交渉可能
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
支払条件
T/T、ウェスタンユニオン、マネーグラム、L/C
Supply Ability
Supply Ability
製品説明

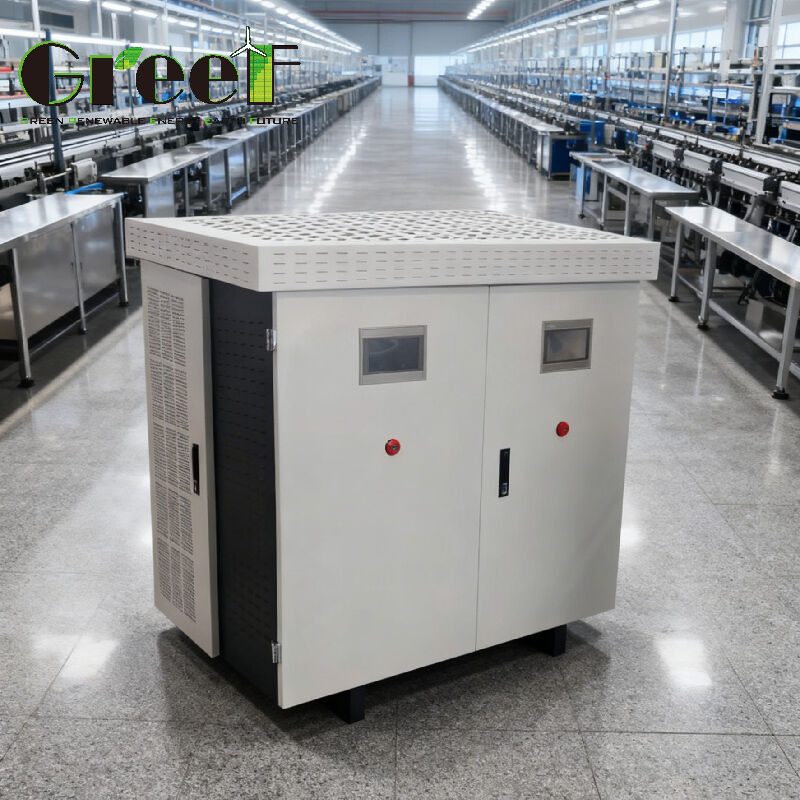

スマートタッチスクリーンのAC/DC多機能電源変換器
240~550V AC電圧範囲,最大効率95%,電源供給ソリューションのためのLCD SMARTタッチスクリーン 0
GREEF ENERGYの多機能変換器は,複数の必須の電力管理機能を単一のコンパクトユニットに統合しています.電池の充電とDCからACの逆転機能のために効率的なACからDCの直線化を提供します.このシステムは,全体的なパフォーマンスと信頼性を最適化するために,包括的なエネルギー管理システムを組み込みます.
テクニカル仕様
発電機のAC入力パラメータ
定数電源 100kW
定位電圧 ≥320Vac
適正な電圧 450Vac
AC電圧範囲 240〜550Vac
最大交流電流 180A
バッテリー入力データ
バッテリータイプ リチウムイオン
電圧範囲 350〜450 Vdc
電池の電圧 400 Vdc
最大充電/放電電電流 250A
ネットワーク接続出力パラメータ
定数電源 100kW
最大電源 120 kW
定位電流 144A
最大電流 173A
電力網の電圧範囲 300~460V
グリッド周波数 50/60 Hz
全和音歪み <3%
パワーファクター >0.99 (-1から1)
システム性能と保護
最大 の 効率性
95%
超負荷容量
1.2x 1分間の名乗電源
保護レベル
IP54
動作温度
-40°Cから60°C
主要 な 特徴
  • 直感的な制御のための二重LCDタッチスクリーンインターフェース
  • PMSGシステムのための高度な電圧および周波数制御
  • 電力網充電によるネットワーク接続操作能力
  • 超電圧,短回路,超電圧保護を含む包括的な保護機能
  • インテリジェント空気冷却システム
  • 複数の通信インターフェイス:イーサネット,RS485,WiFi
  • リモートモニタリングと設定能力
申請
この汎用的なコンバーターシステムは 再生可能エネルギー統合,オフグリッド電力システム,産業用バックアップ電力,ネットワークインタラクティブな装置.
再生可能エネルギー
風力・水力タービンのPMSGの統合
オフグリッドシステム
リモートサイト,キャビン,通信
グリッドインタラクティブ
ネットワーク同期とバッテリー充電
産業/商業
バックアップ電源と建物管理の統合
240~550V AC電圧範囲,最大効率95%,電源供給ソリューションのためのLCD SMARTタッチスクリーン 1
カスタマイズ & オーダー
AC PCS モデルの特徴:
• 400 Vdc の電池電圧で 100 kW の名乗電力を
発電機の最適電圧は450 Vac (240~550 Vacの範囲)
• 品質と安全性についてCE認証
複数の通信モード:イーサネット,RS485,WiFi

注文情報:
• 最低注文: 1セット
配達: 25 営業日
• 支払い:T/T,ウェスタンユニオン,マネーグラム,L/C
• 包装: 防弾用 泡 と プラウダー の 箱
