家へ > 製品 > 格子コントローラー >

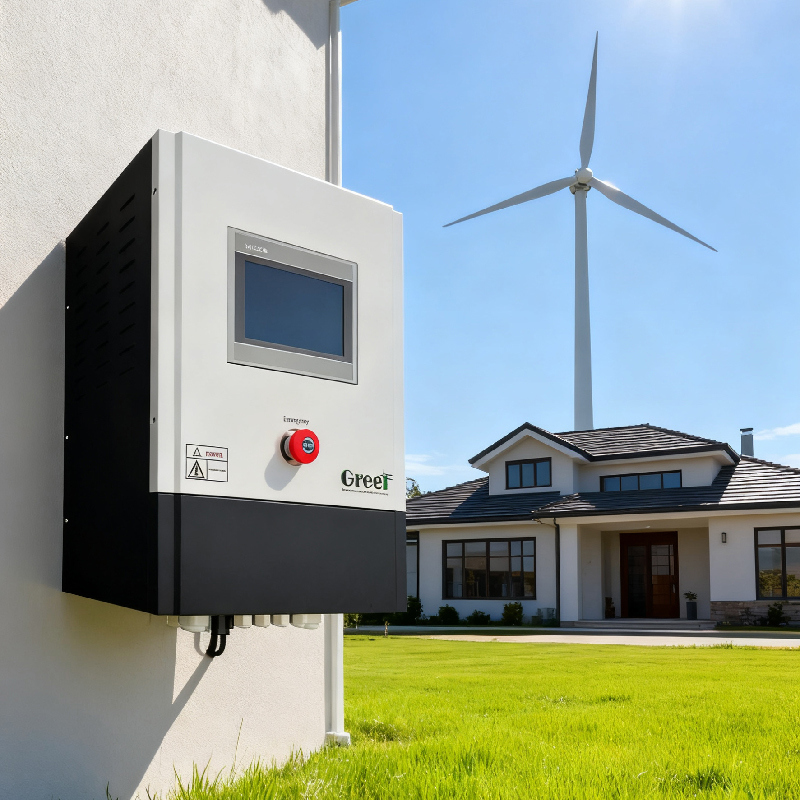

IP20/IP65保護付き効率的なオンサイトコントローラー 99.9% MPPT効率、AC220V-600V定格電圧

IP20/IP65保護付き効率的なオンサイトコントローラー 99.9% MPPT効率、AC220V-600V定格電圧

IP20/IP65保護オンサイトコントローラー

99.9% MPPT効率 グリッドタイドコントローラー

AC220V-600V定格電圧 GT-PCTCシリーズコントローラー

ブランド名:

Greef

証明:

CE

Model Number:

GT-PCTC Series Controller

連絡 ください
引金 を 求め て ください
製品詳細
通信用インタフェース(任意):
RS485/USB/GPRS/WIFI/イーサネット
風力タービン名電圧:
AC220V-600V
冷却方法:
自然のコンベクション
MPPT効率:
99.9%
製品タイプ:
超電圧保護 ネットワーク切断保護 制御電源出力 停止
保護の程度:
IP20 (室内) IP65 (屋外)
格子監視:
はい
PWM常電圧:
≥400dc, ≥700dc
ハイライト:

IP20/IP65保護オンサイトコントローラー

,

99.9% MPPT効率 グリッドタイドコントローラー

,

AC220V-600V定格電圧 GT-PCTCシリーズコントローラー

支払いと送料の条件
Minimum Order Quantity
1Set
価格
交渉可能
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
支払条件
T/T、ウェスタンユニオン、マネーグラム、L/C
Supply Ability
Supply Ability
製品説明
オン・グリッドコントローラーIP20/IP65保護等級とグリッドモニタリングでグリッドを効率的に制御
IP20/IP65保護付き効率的なオンサイトコントローラー 99.9% MPPT効率、AC220V-600V定格電圧 0
製品紹介

グリッド接続コントローラーは、風力発電機のオン・グリッドシステムにおいて最も技術的に重要なコンポーネントです。風力タービンからの三相交流電流を直流電流に変換し、グリッド接続インバーターに送ります。

このGT-PCTCシリーズプロフェッショナルなグリッド接続コントローラーは、PWM定電圧システムと三相ダンプ負荷ブレーキシステムの2つの安全制御システムを特徴としています。この革新的なソリューションは、Growatt、Deye、Solis、Ivetなどの主要ブランドのソーラーインバーターともインターフェースし、ソーラーインバーターが風力タービンの動作条件に適応できるようにします。

製品パラメータ
タイプ GT-PCTC-1.5KW GT-PCTC-2KW GT-PCTC-3KW GT-PCTC-5KW
風力タービン定格電力 1.5KW 2KW 3KW 5KW
風力タービン定格電圧 AC220V-240V AC220V-240V AC220V-380V AC380-450V
機能:
整流器、制御、DC出力
自動保護機能:
過電圧保護、グリッド遮断保護、安定化電源出力、アレスタ
手動機能:
手動ブレーキ、リセット、非常スイッチ
表示モード:
LCDタッチスクリーン
3相ダンプ負荷遅延:
12-20分(すべてのモデル)
環境温度:
-30-60℃
保護等級:
IP20(屋内)/ IP65(屋外)
主な特徴
  • 保護を強化する二重安全制御システム
  • 主要なソーラーインバーターブランドとの互換性
  • 包括的なシステム監視のためのLCDタッチスクリーン
  • IP20/IP65保護を備えた堅牢な構造
  • 広い動作温度範囲(-30℃から60℃)
アプリケーション

この技術は、以下を含むグリッド接続システムで使用されています:

  • 風力発電
  • 水力発電
  • 太陽光発電
カスタマイズオプション
ブランド名:
Greef
型番:
GT-PCTCシリーズコントローラー
認証:
CE
最小注文数量:
1セット
梱包詳細:
フォーム+合板ケース
梱包と発送

オン・グリッドコントローラーは、輸送中の損傷を防ぐために、保護フォームが入った頑丈な段ボール箱に丁寧に梱包されています。各パッケージには、取扱説明書と簡単な設置に必要なケーブルが含まれています。

注文は迅速に処理され、追跡情報が提供される信頼できる運送業者を通じて発送されます。コントローラーが完全な状態で到着するように、丁寧な梱包を保証します。
