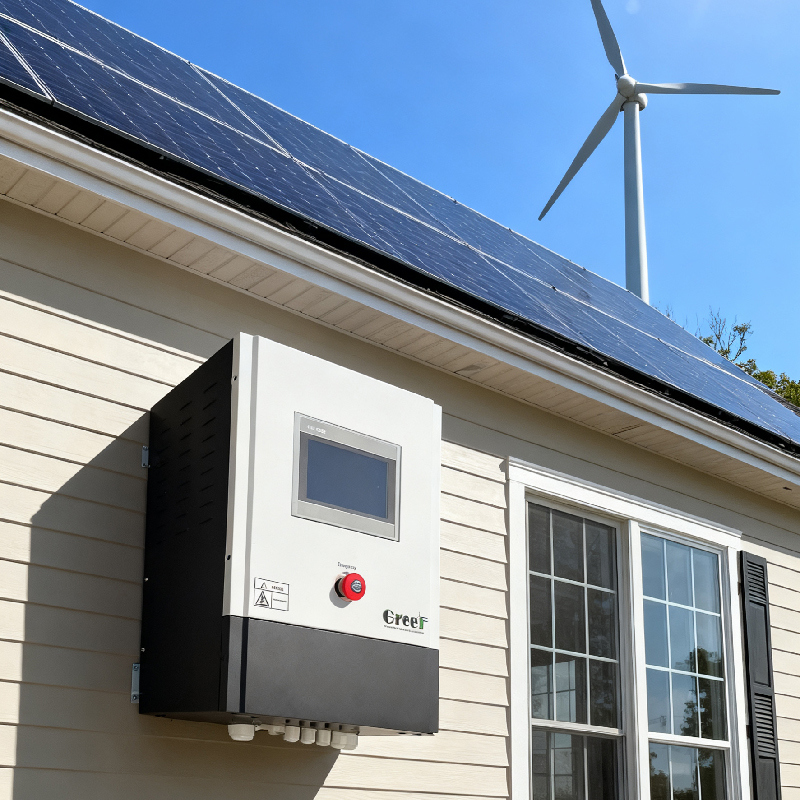

Name: Grid-Tied Controller with Rated Voltage AC220V-600V MPPT Efficiency 99.9% and IP20 Indoor IP65 Outdoors Protection
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

家へ > 製品 > 格子コントローラー >

Grid-Tied Controller with Rated Voltage AC220V-600V MPPT Efficiency 99.9% and IP20 Indoor IP65 Outdoors Protection

Rated Voltage AC220V-600V Grid-Tied Controller

MPPT Efficiency 99.9% On Grid Controller

IP20 Indoor IP65 Outdoors Protection Wind Turbine Controller

ブランド名:

Greef

証明:

Model Number:

GT-PCTC Series Controller

連絡ください

引金を求めてください

製品詳細

格子監視:

はい

手動機能:

手動ブレーキ,リセット,緊急スイッチ

冷却方法:

自然のコンベクション

関数:

矯正器,制御器,DC出力

風力タービン名電圧:

AC220V-600V

MPPT効率:

99.9％

出力周波数:

50Hz/60Hz

製品タイプ:

超電圧保護ネットワーク切断保護制御電源出力停止

支払いと送料の条件

Minimum Order Quantity

1Set

価格

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

支払条件

T/T、ウェスタンユニオン、マネーグラム、L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

最高の価格を入手する

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

最高の価格を入手する

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

最高の価格を入手する

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

最高の価格を入手する

連絡ください

今連絡してください

製品説明

Grid Cut Off Protection DC DC Switching Controllers for Wind Turbines

Rated Voltage: AC220V-600V

Product Introduction

The Grid-Tied Controller is the most technologically critical component in wind generator on-grid systems. It converts three-phase AC current from wind turbines into DC current, which is then sent to grid-tie inverters.

GT-PCTC Series Features

Our professional GT-PCTC series controllers feature dual safety control systems:

PWM constant voltage system
Three-phase dump load brake system

This innovative solution integrates with solar inverters from leading brands including Growatt, Deye, Solis, and Ivet, enabling solar inverters to adapt to wind turbine operating conditions.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier, Control, DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Degree of protection	IP20(Indoor) IP65 (Outdoors)

Display Content

The LCD touch screen displays comprehensive data including generator speed (rpm), input voltage (Vdc), input current (Vac), output power (kW), grid voltage (Vac), grid current (A), and power generation statistics (daily, monthly, yearly).

System Solution

Applications

Designed for grid-connected systems including:

Wind power generation
Hydroelectric power generation
Solar power generation

Customization Options

Brand Name: Greef
Model Number: GT-PCTC Series Controller
Certification: CE
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Foam+plywooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram, L/C
MPPT Efficiency: 99.9%
Cooling Method: Natural Convection
Additional Features: Power curve controller function, grid tied controller, powerful remote control

Packing and Shipping

Each controller is securely packaged in a sturdy cardboard box with protective foam inserts to prevent damage during transit.

Orders processed and shipped within 1-2 business days
Worldwide shipping with tracking information
Variable delivery times with expedited options available
