家へ > 製品 > 格子コントローラーを離れて >

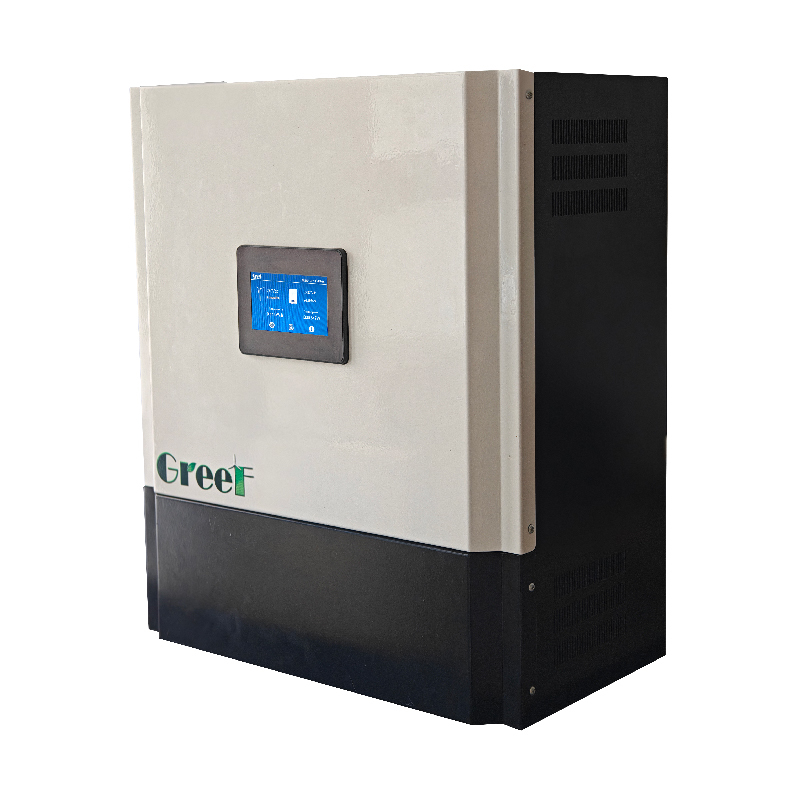

グリーフ AHCC オフグリッドコントローラ 5KW-30KW MPPT/PWM 90-520V

グリーフ AHCC オフグリッドコントローラ 5KW-30KW MPPT/PWM 90-520V

高周波オフグリッドコントローラー

絶縁型エネルギーコンバーターコントローラー

持続可能なオフグリッドコントローラー

ブランド名:

Greef

証明:

CE

Model Number:

AHCC

連絡 ください
引金 を 求め て ください
製品詳細
海面上の高さ:
3000mフル負荷出力
定格出力電流:
100A/200A/80A/150A
方法:
PWM/MPPT
MPPT電圧範囲:
90〜520V/220〜530VACカスタマイズ
定格入力電流:
40AAC/80AAC
定格電力:
5kw/10kw/20kw/30kw
エネルギー貯蔵の種類:
鉛蓄電池、リチウムバッテリー、DCバスバーなど。
入力保護:
ヒューズ;稲妻保護回路
ハイライト:

高周波オフグリッドコントローラー

,

絶縁型エネルギーコンバーターコントローラー

,

持続可能なオフグリッドコントローラー

支払いと送料の条件
Minimum Order Quantity
1Set
価格
交渉可能
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
支払条件
T/T、Western Union、MoneyGram、L/C
Supply Ability
Supply Ability
製品説明
高周波分離式エネルギー変換機 オフグリッドコントローラ
持続可能なオフグリッドソリューション
についてオフグリッドコントローラ風力発電システムの重要な部品で 風力タービンの三相交流電流を 電池バンクを充電するための直流電流に変換します
についてGREEF ネットワーク外風制御装置専用MPPT技術で電力の生産を向上させる.モジュール設計,電気隔離,PWM卸荷,ホストコンピュータ制御を備えています.大きなタッチスクリーンそしてIOT 機能効率的で安全でインテリジェントな発電が可能で 運用・メンテナンス管理も可能です
申請
設計:
  • ネットワーク外風力発電システム
  • ネットワーク外水力発電システム
  • ネットワーク外太陽光発電システム
カスタマイズオプション
仕様 詳細
ブランド名 グリーフ
モデル番号 AHCC
産地 中国
認証 CE
最低注文量 1セット
価格 交渉可能
パッケージの詳細 泡 + 複合木製のケース
配達時間 25 営業日
支払条件 T/T,ウェスタンユニオン,マネーグラム,L/C
タイプ 充電制御器
コミュニケーション 標準:RS485/TCP
入力保護 ファイューズ 防雷回路
定数電源 5KW/10KW/20KW/30KW
最大抵抗電圧 290Vac-530Vac/600Vac 5秒間
システムソリューション:私たちは,あなたの特定のニーズに合わせるシステムを用意できます.私たちの製品についての詳細については,ご連絡ください.
グリーフ AHCC オフグリッドコントローラ 5KW-30KW MPPT/PWM 90-520V 0 グリーフ AHCC オフグリッドコントローラ 5KW-30KW MPPT/PWM 90-520V 1
技術サポートとサービス
  • 設定と構成の支援
  • トラブルシューティングガイド
  • ソフトウェアの更新と保守サポート
  • 欠陥のある製品に対する保証サービス
梱包 と 輸送
輸送中に損傷を防ぐため,各ユニットは安全で保護材料に包装されています.
輸送情報:
  • 注文は1~2営業日以内に処理されます
  • 標準発送: 5-7 営業日
  • 迅速な配送オプション
よく 聞かれる 質問
Q:オフグリッドコントローラのブランド名は何ですか?
A: ブランド名はグリーフ
Q:オフグリッドコントローラのモデル番号は?
A: モデル番号は AHCC です.
Q:オフグリッドコントローラが製造される場所は?
A: 中国製です
Q:オフグリッドコントローラの認証は?
A:CE認証済みです
Q:オフグリッドコントローラーを購入するための支払い条件は?
A: 支払条件はT/T,ウェスタンユニオン,マネーグラム,L/Cです.
