グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac

グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac

5KW MPPTのオフ・グリッドコントローラ

ネットワークオフのコントローラ 30KW 380Vac

MPPTオフグリッドコントローラ 48Vac

ブランド名:

Greef

証明:

CE

Model Number:

AHCC

連絡 ください
引金 を 求め て ください
製品詳細
定格電圧:
48VAC-380VAC
わずかなシステム電圧:
42-240VDC/200-1000VDC(エネルギー貯蔵の種類に応じて調整可能)
定数風力発電:
5kw/10kw/20kw/30kw
入力保護:
ヒューズ;稲妻保護回路
MPPT電圧範囲:
90〜520Vカスタマイズ/220〜530VAC
海面上の高さ:
3000mフル負荷出力
電池のタイプ:
鉛蓄電池、リチウムバッテリー、DCバスバーなど。
最高の抵抗電圧:
290VAC-530VAC/600VAC 5秒間
ハイライト:

5KW MPPTのオフ・グリッドコントローラ

,

ネットワークオフのコントローラ 30KW 380Vac

,

MPPTオフグリッドコントローラ 48Vac

支払いと送料の条件
Minimum Order Quantity
1Set
価格
交渉可能
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
支払条件
T/T、Western Union、MoneyGram、L/C
Supply Ability
Supply Ability
製品説明
風力発電システムのグリフオフグリッド制御器
最大耐電電圧: 290Vac-530Vac/600Vac 5秒間
グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac 0
製品説明
オフグリッドコントローラ (Off-Grid Controller) は,風力発電システムで最も重要な部品で,風力タービンからの三相交流電流を電池バンクを充電するための直流電流に変換する.
GREEFのオフグリッド風力制御装置は,専用MPPT技術により,電力生産を向上させる.
  • 柔軟な構成のための高度なモジュール設計
  • 安全のための電気隔離
  • PWM 卸荷能力
  • ホストコンピュータ制御統合
  • 大きいタッチスクリーンインターフェース
  • 遠隔監視のためのIoT機能
申請
AHCCオフグリッド制御器は,様々な再生可能エネルギーシステムに設計されています.
  • 風力発電システム
  • 水力発電システム
  • 太陽光発電システム
信頼性の高い制御とモニタリング機能を提供することで,性能と効率を最適化します.
テクニカル仕様
モデル AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
定位電源 5KW 10KW 20KW 30KW
製品タイプ MPPT,高周波分離型新エネルギー変換機
DC出力側
エネルギー貯蔵の種類 鉛酸電池,リチウム電池,直流バスバーなど
定数出力電流 100A 200A 80A 150A
出力電圧範囲 42-240Vdc (調節可能) 200-1000Vdc (調節可能)
圧力の安定化精度 ≤±0.5%
安定の精度 ≤±1%
風力タービンの入力側
定数電圧 48Vac~380Vac 380Vac
最大抵抗電圧 290Vac-530Vac 5秒間 600Vac 5秒間
MPPT電圧範囲 90~520V オーダーメイド 220~530Vac
最大出力 10kW 20kW 40kW 60KW
定数入力電流 40Aac 80Aac 40Aac 80Aac
入力保護 ファイューズ,雷保護回路
卸荷側
卸荷方法 PWM
定数放出電流 40Adc 100Adc 50Adc 100Adc
最大抵抗電流 60A 200A 200A 400A
労働環境
環境温度 -25°C〜50°C
保存温度 -40°C~75°C
相対湿度 0~95%
海面上空の高さ 全負荷出力3000m
通信インターフェース 標準:RS485/TCP
制御器のサイズ (mm) 485×267×450mm 343×605×970mm
制御器の重量 29.5kg 38.5kg 61.5kg 71.5kg
ダンプ負荷の大きさ (mm) 695×131×194mm 700×450×750mm 820×620×900mm 900 x 700 x 1270mm
卸荷物 重量 18kg 40kg 80kg 120キロ

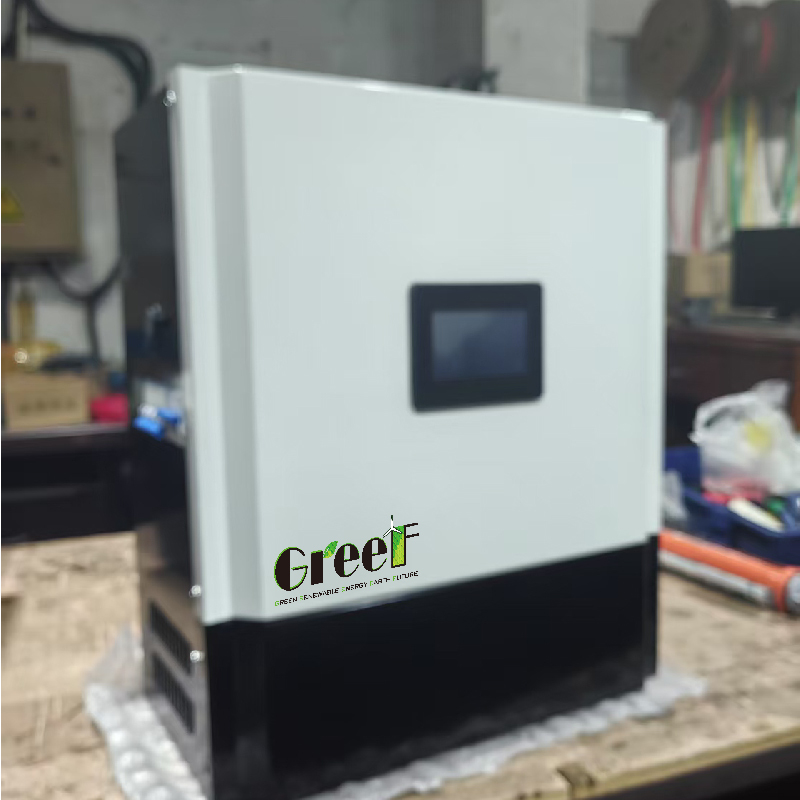

製品画像
グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac 1
グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac 2
グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac 3
グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac 4
システムソリューション
特定のニーズに合わせるシステムです連絡してください.製品についてもっと知りたいのです
グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac 5
製品パッケージング
グリーフオフグリッドコントローラ 5KW-30KW MPPT 48Vac-380Vac 6
