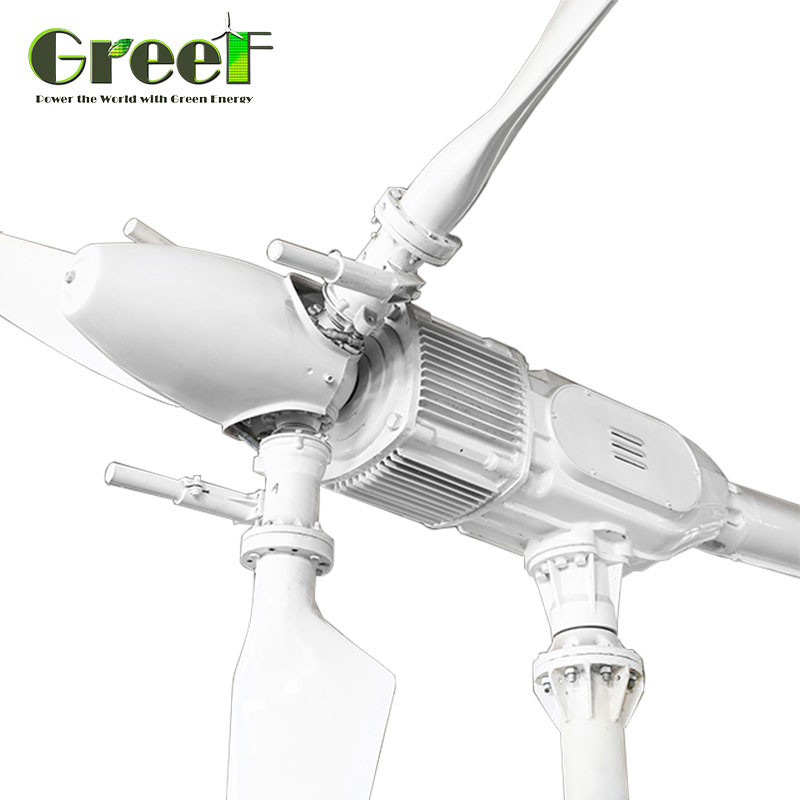

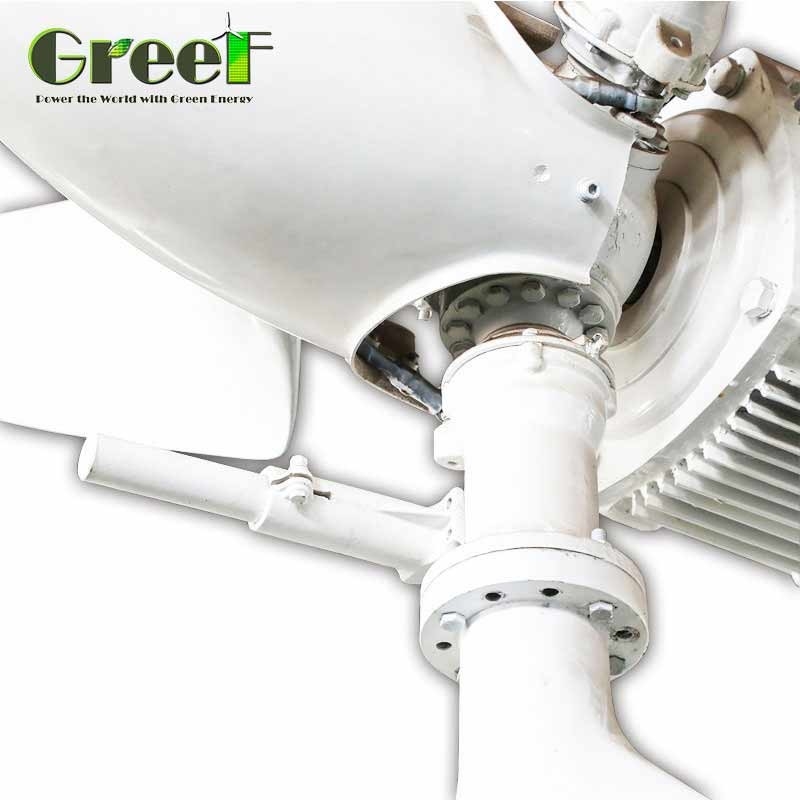

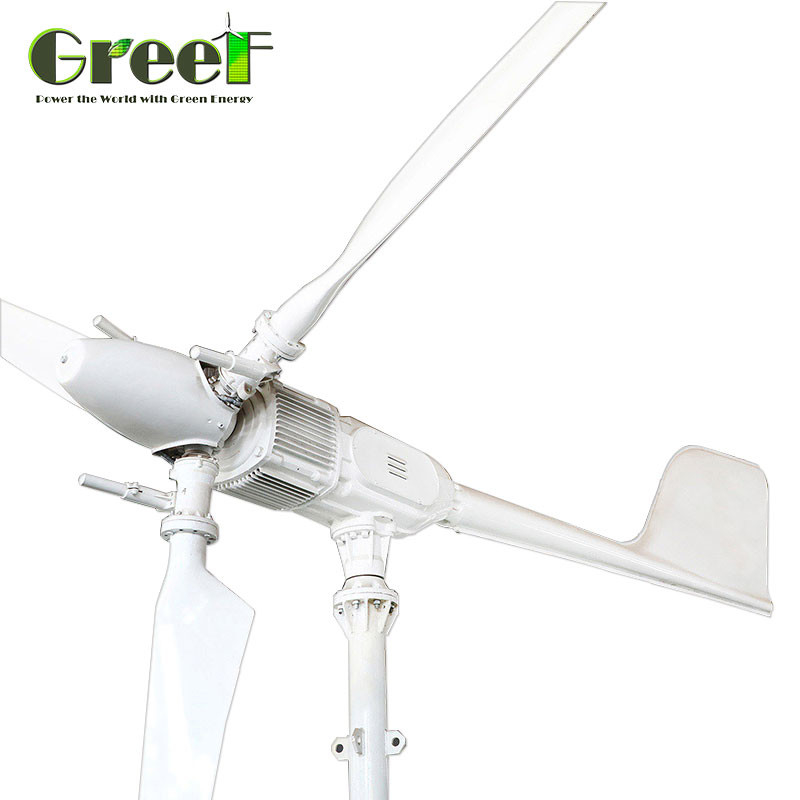

風力タービン 家庭用電磁発電機 10KW 20KW 30KW

風力タービン 家庭用電磁発電機 10KW 20KW 30KW

10KWの風力タービン磁気発電機

30KWの風力タービン磁気発電機

20KWの風力タービン磁気発電機

起源の場所:

中国

ブランド名:

GREEF

証明:

ce

モデル番号:

AH-5KW

連絡 ください
引金 を 求め て ください
製品詳細
定数電源:
5kw
開始の風速:
2.5m/s ((5.59mph)
掃描された地域:
24m2
工場重量:
400KG
安全風速:
60m/s (133.8mph)
刃の長さ:
2.5m (8.2フィート)
刃の回転子の直径:
5.6m ((18.37フィート)
刃の物質的な&Quantity:
FRP /3PCS
ハイライト:

10KWの風力タービン磁気発電機

,

30KWの風力タービン磁気発電機

,

20KWの風力タービン磁気発電機

支払いと送料の条件
最小注文数量
1セット
価格
交渉可能
パッケージの詳細
カートンかPlywoodenの場合
受渡し時間
25-30仕事日
支払条件
T/T、ウェスタン・ユニオン、L/C
供給の能力
1ヶ月あたりの400セット
製品説明

風力タービン 家庭用電磁発電機 10KW 20KW 30KW 0風力タービン 家庭用電磁発電機 10KW 20KW 30KW 1

風力タービン 家庭用電磁発電機 10KW 20KW 30KW 2

なぜ AH-5KW風力タービンを選んだのか?




世界最先端の機械的遠心変角音位技術を用いて,平均年間
発電量は30%増加します



風力タービン 家庭用電磁発電機 10KW 20KW 30KW 3風力タービン 家庭用電磁発電機 10KW 20KW 30KW 4

変数音位技術の使用は,風力タービン発電の効率を大幅に向上させました
発電量増加のグラフは下記のように示されています.



風力タービン 家庭用電磁発電機 10KW 20KW 30KW 5



テクニカル仕様




パフォーマンス
定数電源 5KW
マックス パワー 6KW
開始 風速 2.5m/s ((5.59mph)
風の定速 10m/s (22.37mph)
作業風速 3〜30m/s (6.71〜67.2mph)
安全風速 60m/s (133.8mph)
物理的パラメータ
刃長 2.5m (8.2フィート)
刃のローターの直径 5.6m ((18.37フィート)
刃材と量 FRP /3PCS
工場重量 400kg
掃描された地域 24m2
塔の高さ ≥8m,熱浸しで電熱した
発電機パラメータ
定速 240 RPM
定数 稼働電圧 DC400V/DC240V
スタートトルク <0.3N.M
発電機のタイプ 3相恒常交流磁石発電機
風の応答方法 風に吹かれて 吠える
停止方法 ピッチブレーキ+アクティブイア
スピードモード 傾き + 活発な傾き + 電磁式ブレーキ
保護度 IP54
作業温度 -20〜+50°C



パワー曲線


風力タービン 家庭用電磁発電機 10KW 20KW 30KW 6



年間エネルギー生産




年間風速 (m/s) 3.5 4 4.5 5 5.5 6 6.5 7
生産量 (kWh) 2481 3744 5168 7298 8277 12120 13785 16980



このデータは,局所条件に応じて ±10%の差異を有する.





AH-5KW風力タービン?


パワー曲線追跡機能



1. ネットワーク外システム用 MPPT電荷制御装置

2. ネットワーク上のシステムのために MPPT風力インバーター



● 風力タービン MPPT の 軌跡 点 は 自分 で 調節 できる.
●オフグリッドシステム風力タービンの風速充電が低減
● 完全な保護機能
● PV制御機能,風速測定機能,回転速度など,いくつかの機能はオプションです.
制御機能と温度補償機能
● RS232/RS485/RJ45/GPRS/WIFI/Bluetooth/Zigbeeはオプションです.
GPRS/WIFI/Bluetooth/RJ45接続)

風力タービン 家庭用電磁発電機 10KW 20KW 30KW 7

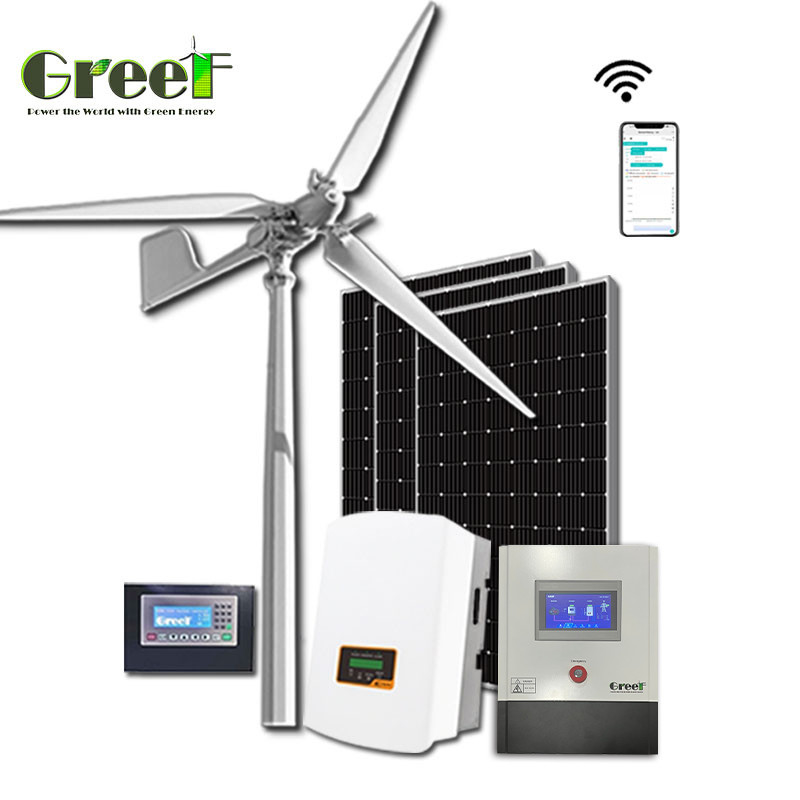

システムソリューション


風力タービン 家庭用電磁発電機 10KW 20KW 30KW 8風力タービン 家庭用電磁発電機 10KW 20KW 30KW 9

製品展示会


風力タービン 家庭用電磁発電機 10KW 20KW 30KW 10風力タービン 家庭用電磁発電機 10KW 20KW 30KW 11風力タービン 家庭用電磁発電機 10KW 20KW 30KW 12
