家へ > 製品 > 永久マグネット発電機 >
低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き

低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き

自由エネルギーの永久マグネット発電機5kw

低いRpmの永久マグネット発電機

自由エネルギーの磁石の発電機に耐えるSKF

起源の場所:

中国

ブランド名:

GREEF

証明:

CE

モデル番号:

GDF

連絡 ください
引金 を 求め て ください
製品詳細
応用:
発電
定格電圧:
12V / 24V / 48V
定格電力:
300w~30kw
発電機のタイプ:
3位相AC永久磁石、3相AC永久磁石同期ジェネレーター、
ハイライト:

自由エネルギーの永久マグネット発電機5kw

,

低いRpmの永久マグネット発電機

,

自由エネルギーの磁石の発電機に耐えるSKF

支払いと送料の条件
最小注文数量
1set
価格
交渉可能
パッケージの詳細
フォーム+プライウッドケース
受渡し時間
25仕事日
支払条件
T/T、Western Union、MoneyGram、L/C
供給の能力
1ヶ月あたりの400セット
関連製品
連絡 ください
今連絡してください
製品説明

5kw 10kw 50kw 200kw 低回転数 自由エネルギー永久磁石発電機



製品の説明
永久磁石発電機は、特に部分負荷において高効率のエネルギー変換を提供し、独立した界磁励磁システムを必要としません。当社の永久磁石発電機は、競合製品よりも軽量で効率的であり、組み立て作業も少なくて済みます。
永久磁石発電機は、風力タービン、水力タービン、モーターなど、多数の用途で使用されています。
低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き 0

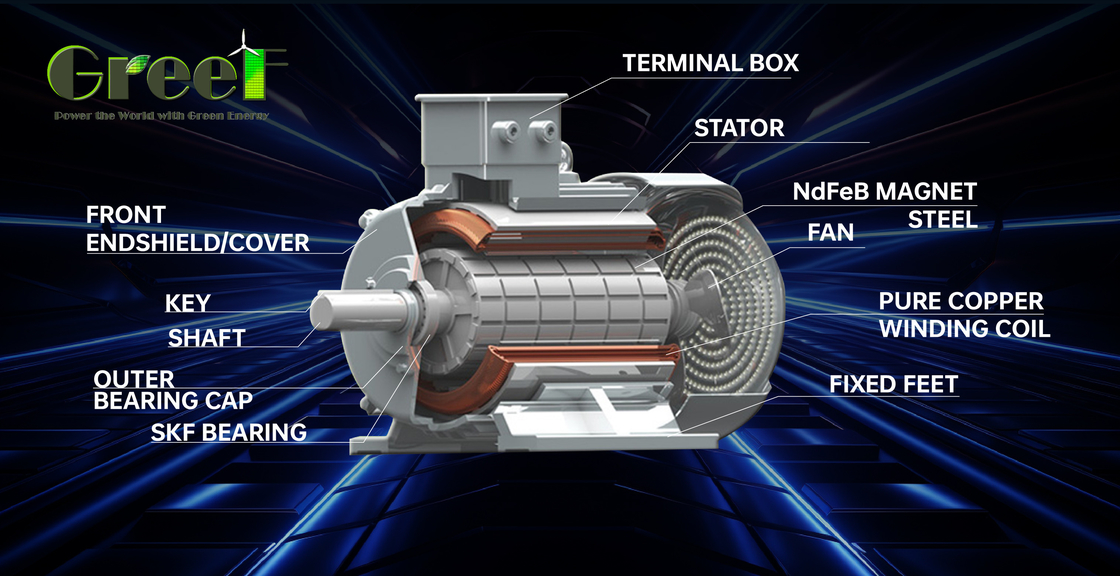

1

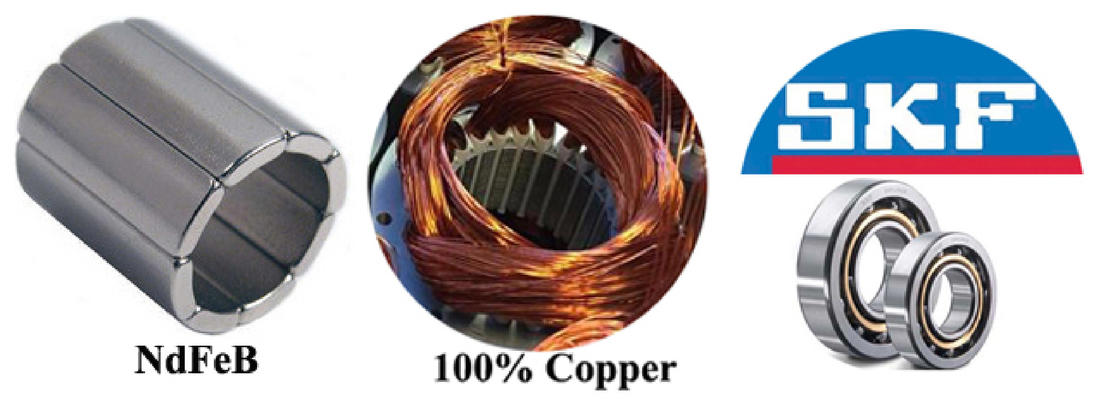

希土類Nd-Fe-B永久磁石
2
低速
3
ダイレクトドライブ、ギアボックス不要
4
SKFベアリング
5
力率は1に近い
6
メンテナンスフリーで、あらゆる環境で使用できます。
7
長寿命>20年、高速で24時間365日稼働可能。
8
カスタマイズ:電圧、速度、電力、周波数など。
9
多極設計により、整流器とインバーターの周波数と効率を向上。
10
Hクラス絶縁、真空含浸。
11
優れた放熱性、ファン冷却も追加可能



システム
低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き 1

低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き 2低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き 3



利点
代替エネルギー発電機
GREEF社は、電圧、速度、電力、周波数など、各顧客の要件に応じてカスタマイズされた発電機を提供します。
定格出力
0.5--5000
kW
定格回転速度
20--3000
rpm
定格電圧
48--1140
Vac
周波数
60/50
Hz
極数
24
発電機の種類
3相AC同期発電機
磁石の種類
NdFeB
巻線方法
Y
磁石温度レベル
最大120℃
巻線温度レベル
最大180℃
効率
>95%
絶縁グレード
H
絶縁抵抗
100Mohm以上(500Vdc)
保護等級
IP54
発電機シェル材質
鋳鉄
巻線材料
100% 銅
シャフト材質
鉄心
冷間圧延ケイ素鋼板
ベアリングブランド
SKF
冷却方法
ファン冷却
重量(N.W /G.W)
132kg /152kg
梱包サイズ
870*470*570mm
設置
水平
低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き 4
低RPM永久磁石発電機 カスタマイズ 5kw 10kw 50kw 200kw、3年保証付き 5
当社のサービス



すべてのGREEF発電機は3年間無料保証、すべての生涯にわたる技術サポートと部品コストの供給。

(1) 保証期間は、船荷証券または航空運送状に記載されている出荷日から開始されます。
(2) 保証期間中の無料メンテナンスサービスは、関連費用を当社が負担し、お客様に料金を請求しません。保証期間外の損傷の場合、当社は人件費と材料費を請求します。
(3) 保証期間中、当社の品質問題に起因するメンテナンスの運賃は当社が負担し、保証対象外または人為的損傷の場合、運賃はお客様負担となります。



当社を選ぶ理由
当社は、永久磁石発電機、風力タービン、風力タービンブレード、コントローラー、インバーターなどに焦点を当てたグローバルサプライヤーです。
「GREEF」は、自社で製品を設計する独自のエンジニア設計チームを持っています。さらに、CE承認を無事に取得し、お客様からのサポートを得ており、日々ビジネスを拡大しています!
私たちを信じてください、私たちはあなたと永遠に一緒にいられます。
