家へ > 製品 > コアレスの永久マグネット発電機 >
コアレス軸方向磁束永久磁石発電機 3相発電 3年保証

コアレス軸方向磁束永久磁石発電機 3相発電 3年保証

2kwディスク永久マグネット発電機

Corelessディスク永久マグネット発電機

Coreless 2kw低いrpmの交流発電機

起源の場所:

チンタオ

ブランド名:

GREEF

証明:

CE

モデル番号:

GDG

連絡 ください
引金 を 求め て ください
製品詳細
タイプ:
風力発電機、50kw ~ 500KW 永久磁石オルタネーター
定格電力:
300w~30kw
定格電圧:
12V / 24V / 48V
発電機のタイプ:
三相交流永久磁石、三相交流永久磁石同期発電機
応用:
発電
保証:
3年
色:
マルチカラー
サイズ:
カスタマイズされた磁石のサイズ
発電機材料:
100% 銅線+Nd-Fe-B
ジェネレータ:
3相永久磁石発電機 AC電源交換機
ハイライト:

2kwディスク永久マグネット発電機

,

Corelessディスク永久マグネット発電機

,

Coreless 2kw低いrpmの交流発電機

支払いと送料の条件
最小注文数量
1
価格
$299-12999
パッケージの詳細
内部の泡+ Plywoodenの箱
受渡し時間
25DAY
支払条件
L/C、D/A、D/P、Western Union、MoneyGram
供給の能力
100単位
製品説明
縦風力タービンのための2kWコアレスディスク永久磁石発電機





テクニカルデータ





モデル GDG-2KW-180
定数電源 2KW
指定回転速度 180 RPM
オプション 定位電圧 72V~400Vac
効率性 >90%
ウェンディング 方法 Y
隔熱 抵抗 100Mohm Min ((500V DC)
漏れレベル <5mA
スタートトルク <0.5N/M
定数トルク 120N/M
フェーズタイプ 3 段階
構造 外回転器
スタータ コアのないワイヤーコイル
ローター 稀土 の 永久 磁石
発電機シェル直径 445mm
発電機シェルの長さ 258mm
体重 51kg
軸数計 59mm
ジェネレーターの殻材料 アルミ合金
軸材 炭素鋼
ローヤリング NSK 深溝球軸承













図示

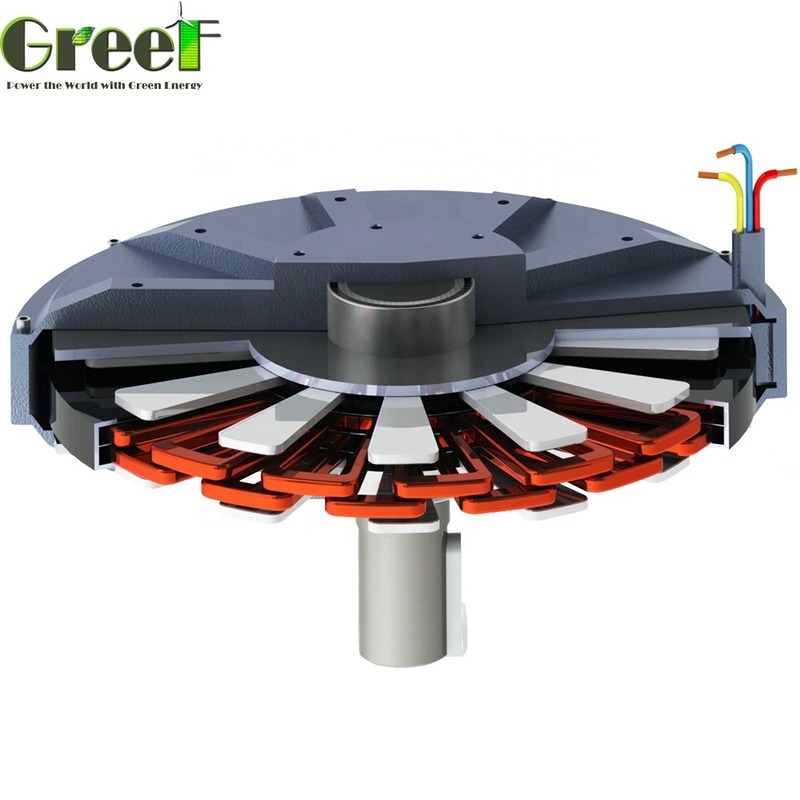

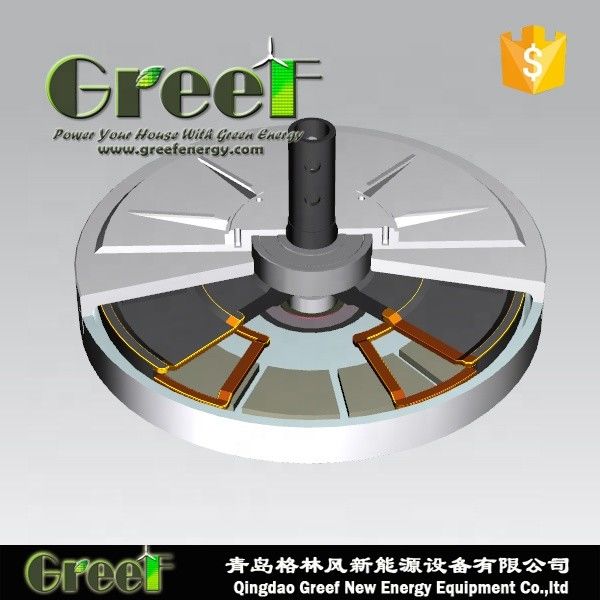

コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 0コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 1

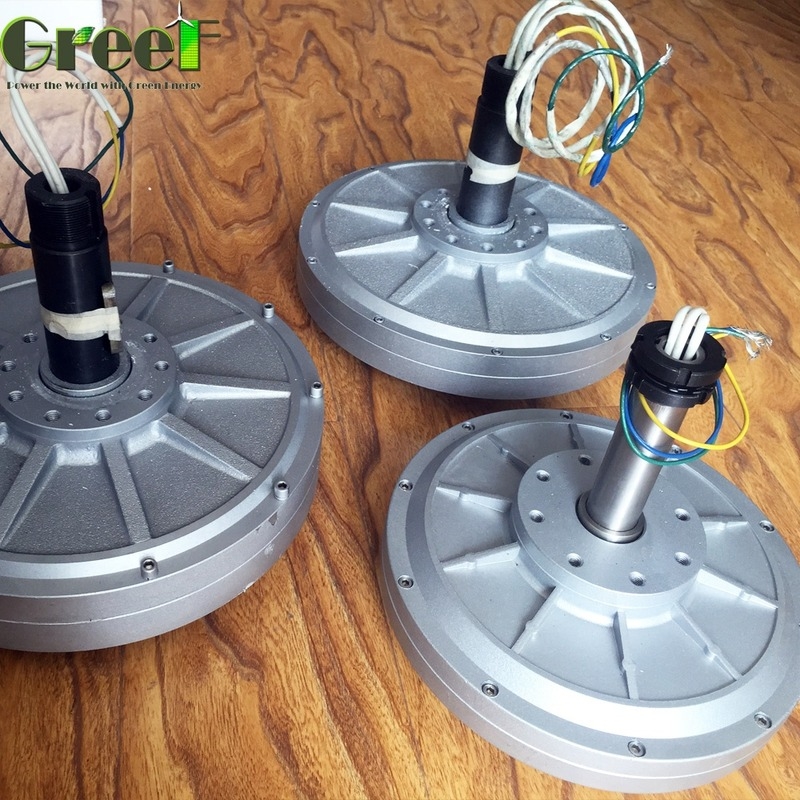

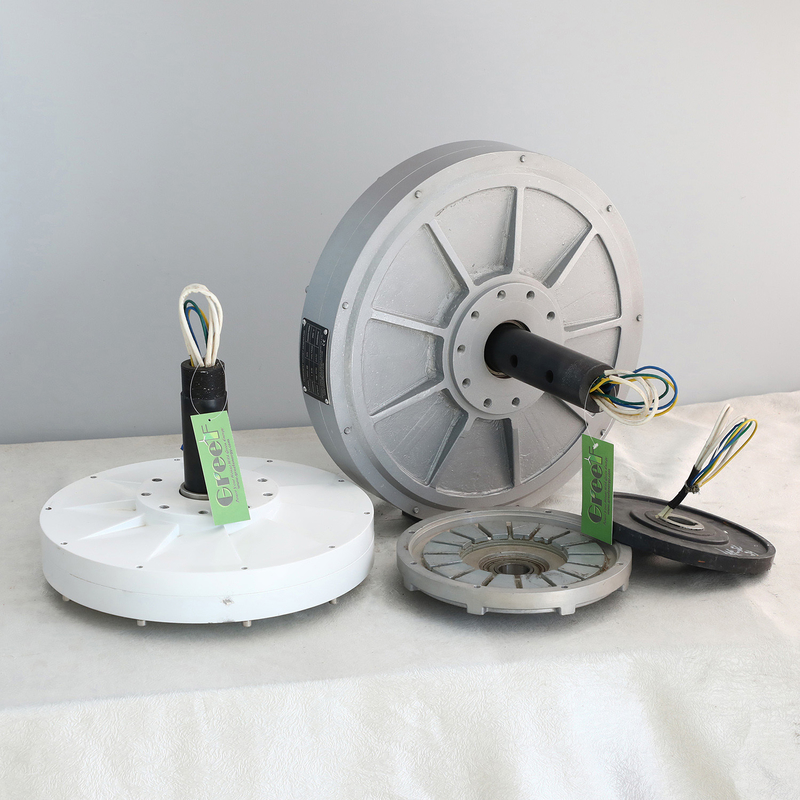

コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 2コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 3









製品 の 利点





このコアレスパーマンマグネットは,常に垂直軸の風力タービン,および非常に低いスタートトルクと低いノーマル回転速度,低スタート風速を要求する他の発電機システムで使用されています.軽量で小さいサイズ.



1 トルク特許技術:最新の"Precise Coil"技術を使用します.ヒステレシスとギアノッチ効果がないため,スタートトルクが非常に低い<0.5N.M
2 元の構造: 円盤型コアレスモーターを使用する 伝統的なモーターは,体積と重量を減らす.
3 より高い利用率: 低速風力発電の使用のボトルネックを取り除くために,特殊なコアレスモーター技術を使用します.
4 高い信頼性:特殊な構造により,電源と体積,電源と重量の比率が大きくなり,従来のモーターの8倍もの寿命があります.
5 ギアなし 直駆 低回転ジェネレーター
6 厳しい環境や極端な環境での風力タービンの使用のための高品質のコンポーネント
7 高効率と低機械抵抗エネルギー損失
8 アルミニウム合金外枠と特殊な内部構造により優れた熱消耗.

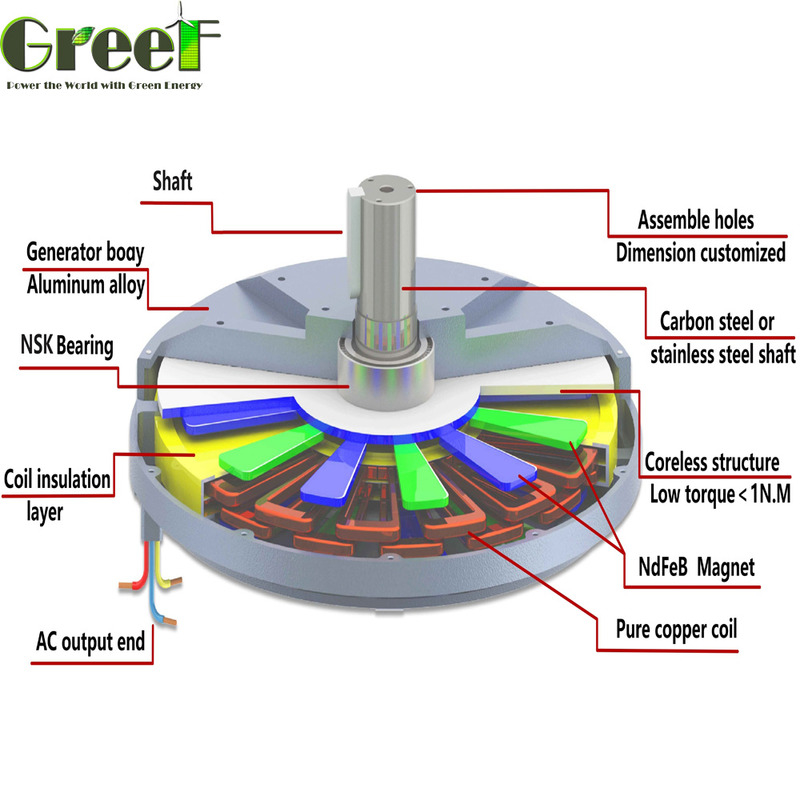

コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 4









適用する



制御器とインバーターを含む 完全な発電システムも提供できます


オングリッド発電システム

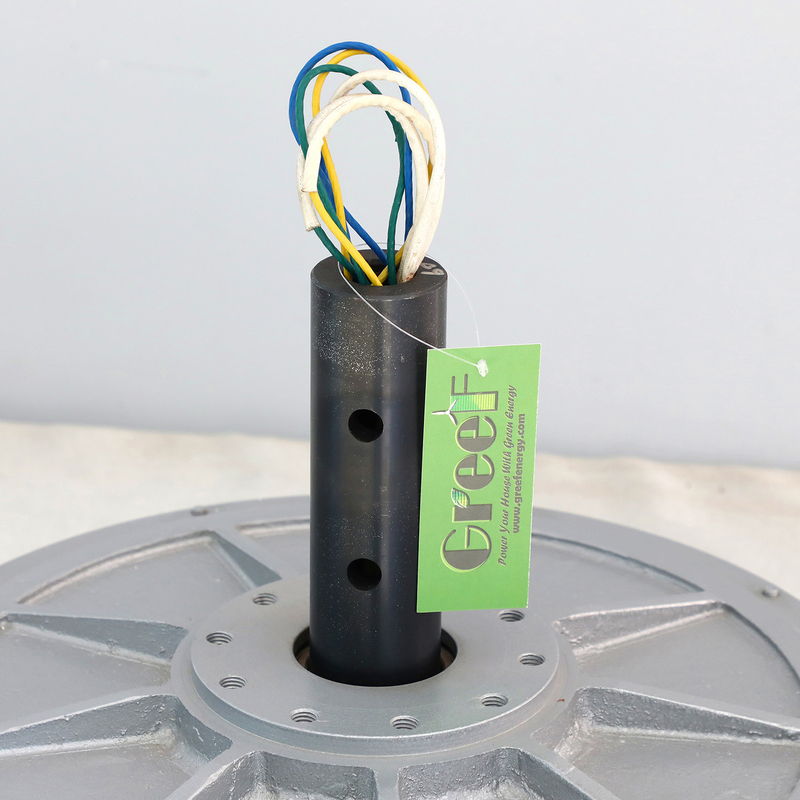

コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 5
コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 6



ネットワーク外発電システム
コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 7
コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 8コアレス軸方向磁束永久磁石発電機 3相発電 3年保証 8




買い手 の レビュー



すべての買い手は,私たちの製品,輸送とサービス,私たちに与える非常に満足しています 5つ星!


会社情報



我々はトップ3のサプライヤーアリババ・ドットコムで生成者の製品



--- 事務局の監査を受けたサプライヤー

---製品の品質と納期は,alibaba.comによって保証されています.

---10年経験エンジニア&QCチーム

---7日*24時間勤務

---販売後のサービスに集中する.

---ワンストップ パーソナライズされたシステムソリューション

---60カ国以上との貿易経験

---CE,TUV,UL,RoHS,SAA認定

---OEM,ODMは受け入れられます


発電機は無料だ3年保証終身技術サポートと部分費用の供給.



(1) 保証期間は,荷物又は航空貨物証に記載されている出荷日から開始される.
(2) 保証期間中の無料メンテナンス 費用は会社負担で,顧客から手数料を請求しない.保証期間外での損害の場合,無料保証.労働費と材料の料金を請求します.
(3) 保証期間,会社に負担される貨物の保守により引き起こされる会社の品質上の問題,保証の対象でない場合や人為的な損傷の場合,顧客による貨物料.
