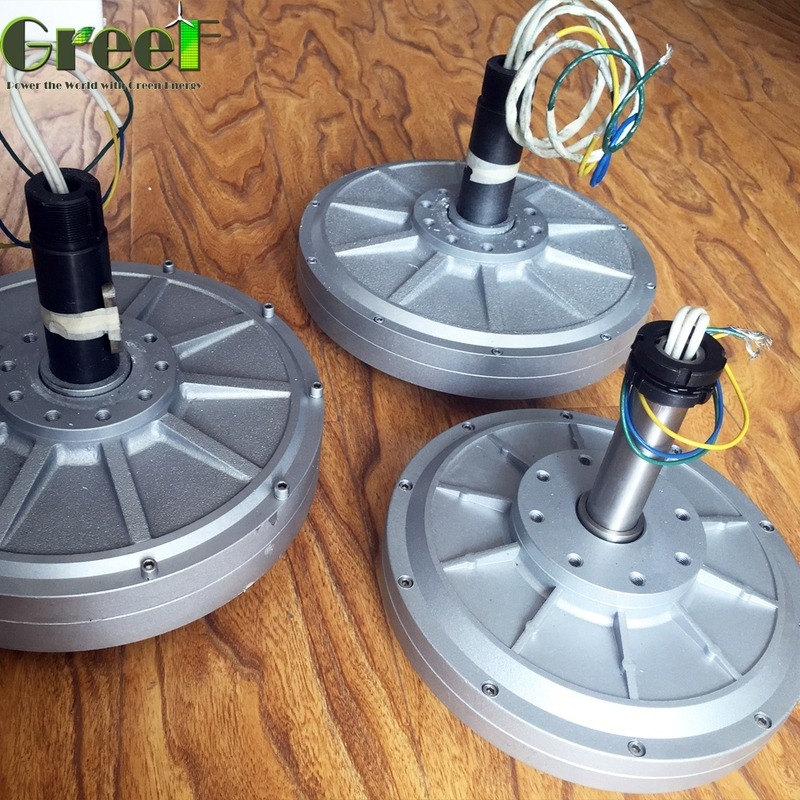

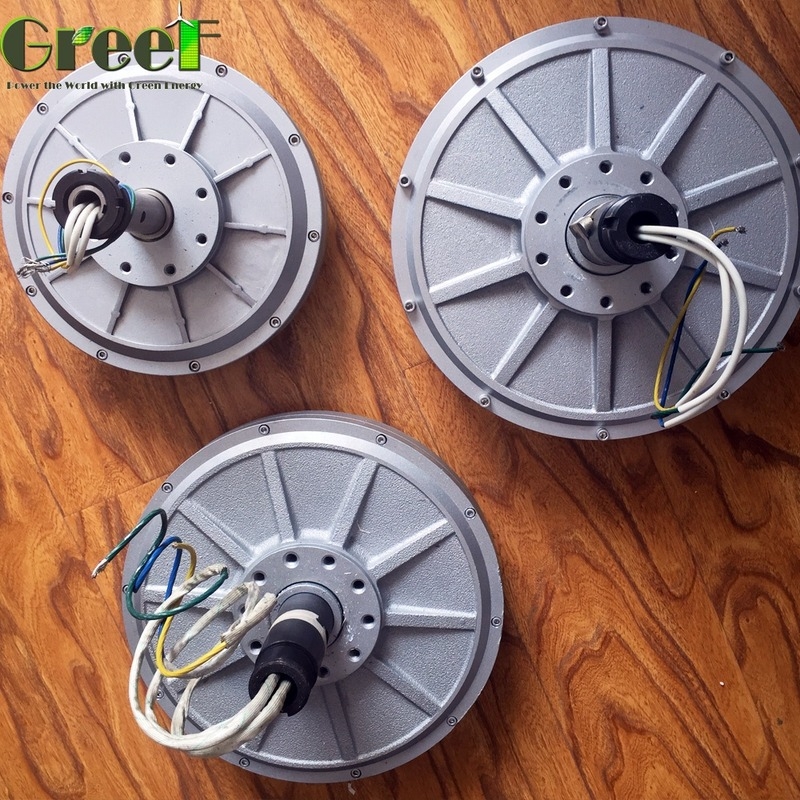

2kw Corelessディスク永久マグネット発電機3段階の発電

2kw Corelessディスク永久マグネット発電機3段階の発電

2kwディスク永久マグネット発電機

Corelessディスク永久マグネット発電機

Coreless 2kw低いrpmの交流発電機

起源の場所:

チンタオ

ブランド名:

GREEF

証明:

CE

モデル番号:

GDG

連絡 ください
引金 を 求め て ください
製品詳細
タイプ:
風力の発電機、500KW永久マグネット交流発電機への50kw
評価される力:
300w-30kw
評価される電圧:
12V / 24V/48V
発電機のタイプ:
永久マグネット3段階AC三相AC永久マグネット同期発電機
適用:
発電
保証:
3年
Portectionの等級:
IP 54
色:
多色刷り
サイズ:
カスタマイズされた磁石のサイズ
発電機材料:
100%銅wire+Nd FeB
発電機:
3-Phase永久マグネット発電機AC交流発電機
支払いと送料の条件
最小注文数量
1
価格
$299-12999
パッケージの詳細
内部の泡+ Plywoodenの箱
受渡し時間
25DAY
支払条件
L/C、D/A、D/P、ウェスタン・ユニオン、MoneyGram
供給の能力
100単位
関連製品
連絡 ください
今連絡してください
製品説明
2kw corelessdisk permanent magnet generator for Vertical wind turbine





Technical Data





Model GDG-2KW-180
Rated Power 2KW
Rated Rotate Speed 180 RPM
Option Rated Voltage 72V-400Vac
Efficiency >90%
Wending Method Y
Insulating Resistance 100Mohm Min(500V DC)
Leakage Level <5 ma
Start Torque <0.5N/M
Rated Torque 120N/M
Phase Type 3 Phase
Structure Outer rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator Shell Diameter 445mm
Generator Shell Length 258mm
Weight 51KG
Shaft drameter 59mm
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing NSK Deep groove ball bearing

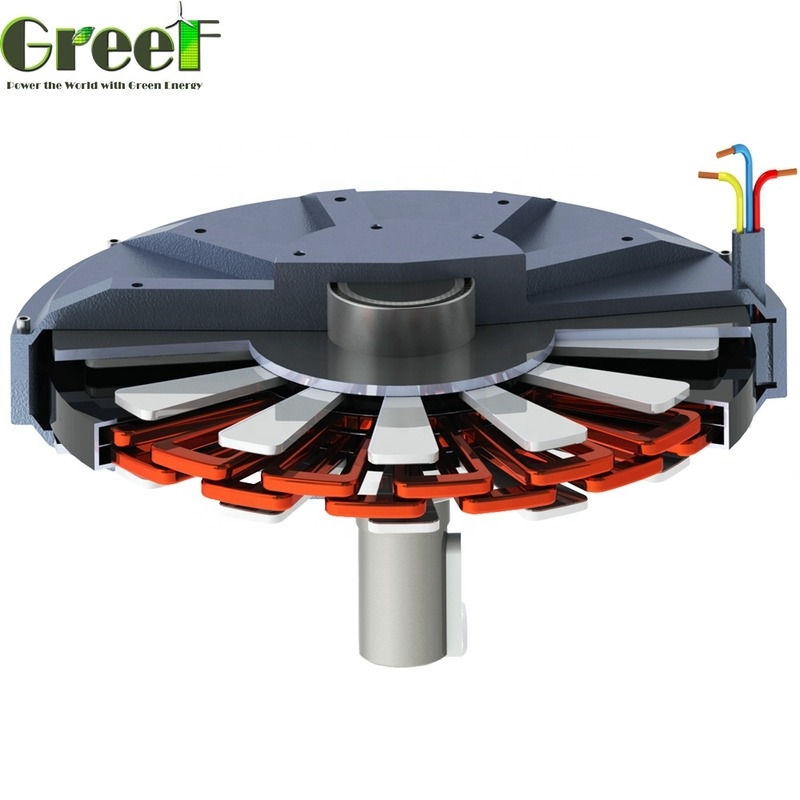

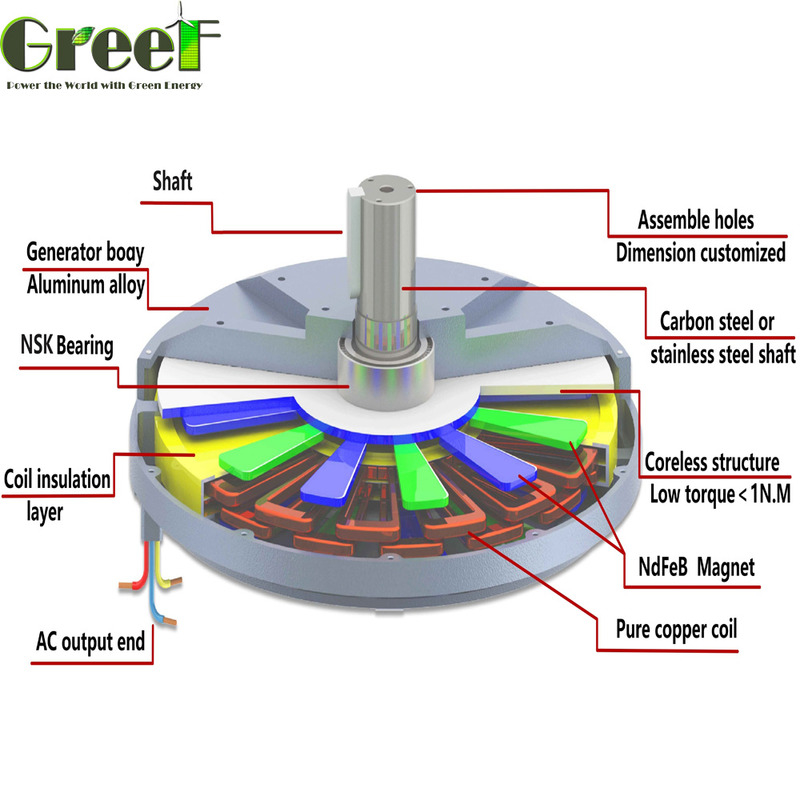

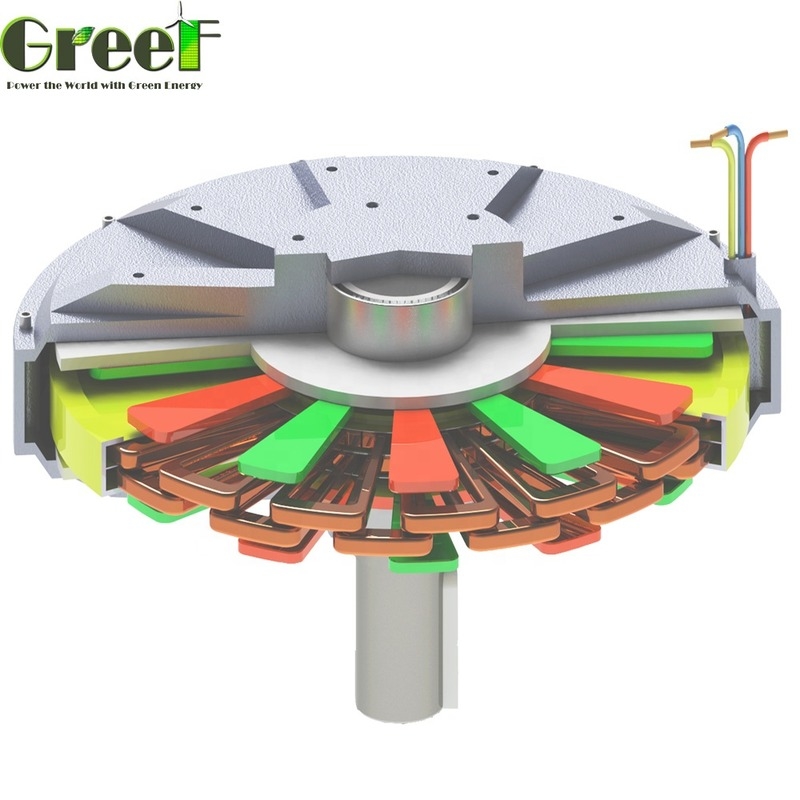

Drawing Sample





2kw corelessdisk permanent magnet generator for Vertical wind turbine2kw corelessdisk permanent magnet generator for Vertical wind turbine

2kw corelessdisk permanent magnet generator for Vertical wind turbine2kw corelessdisk permanent magnet generator for Vertical wind turbine









Product Advantages





This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.



1 Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.5N.M
2 Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3 Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4 Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5 Gearless, direct drive, low RPM generator.
6 High standard, quality components for use in harsh and extreme environments for wind turbines
7 High efficiency and Low mechanical resistance energy loss
8 Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.



2kw corelessdisk permanent magnet generator for Vertical wind turbine









Application



We can also provide the complete generator system including Controller and Inverter:


On-grid Generator System

2kw corelessdisk permanent magnet generator for Vertical wind turbine
2kw corelessdisk permanent magnet generator for Vertical wind turbine



Off-grid Generator System
2kw corelessdisk permanent magnet generator for Vertical wind turbine
2kw Corelessディスク永久マグネット発電機3段階の発電 82kw Corelessディスク永久マグネット発電機3段階の発電 8




Buyer Reviews



Every buyers are very satisfied with our products, shipment and sevice, give us full 5 stars!


Company Information



We are Top 3 suppliers of generators products on alibaba.com



--- Bureau Audited Supplier.

--- Products quality and on time delivery are guaranteed by alibaba.com.

--- 10 years’ experience engineer & QC team

--- 7days*24 hours on time service

--- Focus on after-sale service.

--- One stop customized system solution

--- Trade experience with more than 60 countries.

--- CE ,TUV, UL , RoHS, SAA certificated

--- OEM ,ODM are accepted


Generators are free 3 years warranty, All lifelong technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
